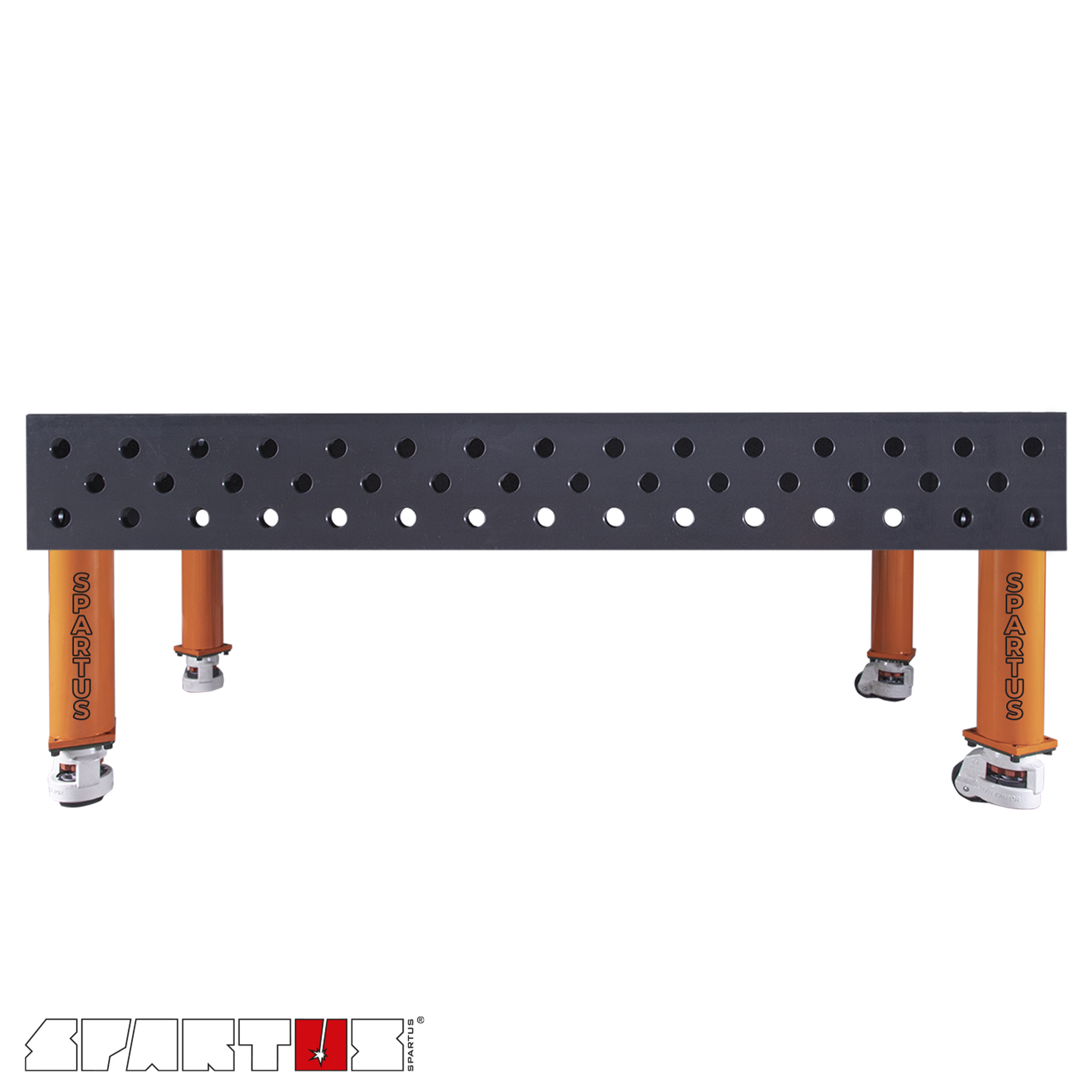

Maximus-3d-1500
Welding table SPARTUS®
MAXIMUS 3D 1500 x 1000 x 200
Technical parameters
| Size of the work surface [mm] | 1500 x 1000 x 200 |
| Made | welded with a protective coating (nitrided) |
| Material | S355J2+N steel acc. to EN 10025-2 |
| Table top thickness [mm] | 25 |
| Table horizontal precision [mm] | 0.1/1000 |
| Table vertical precision [mm] | 0.1/200 |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Carrying capacity [kg/leg] | 2000 |
| Number of legs [pcs.] | 4 |
| Type of legs | with foot / with a wheel |
| Possibility of leveling |  |
| Table top weight [kg] | 535 |
