Welding table SPARTUS®
HERMES 3D 1200 x 1200 x 200

1 / 20

Technical parameters

Size of the work surface [mm] 1200 x 1200 x 200
Made welded
Material S355J2+N steel acc. to EN 10025-2
Table top thickness [mm] 25
Table horizontal precision [mm] 0.1/1000
Table vertical precision [mm] 0.1/200
Standard D28
(drilled and milled holes 28mm diameter)
Carrying capacity [kg/leg] 2000
Number of legs [szt] 4
Type of legs with foot / with a wheel
Possibility of leveling tak
Table top weight [kg] 514


download calatog Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge
CODE DESCRIPTION TOTAL TABLE HEIGHT LEG HEIGHT (L)

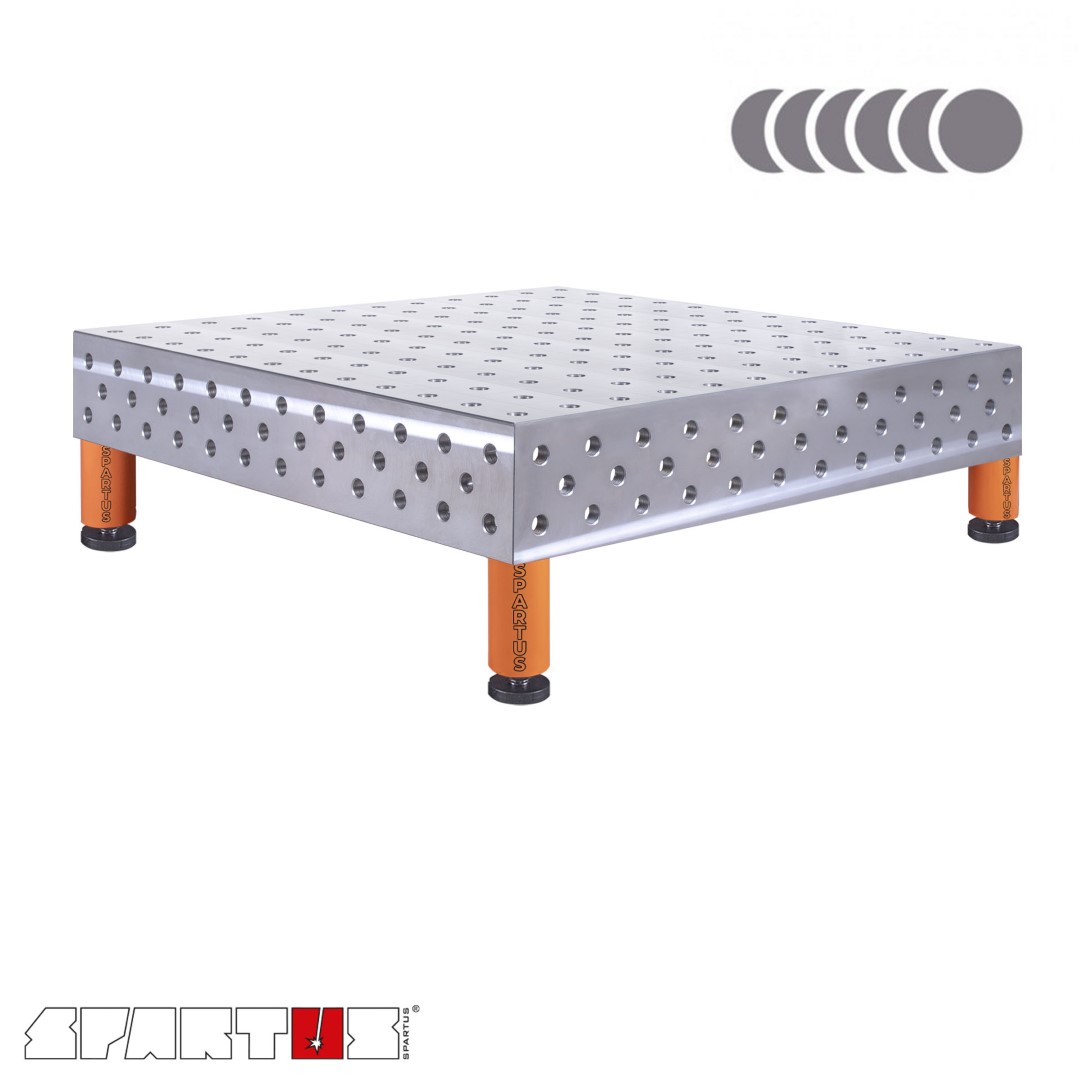

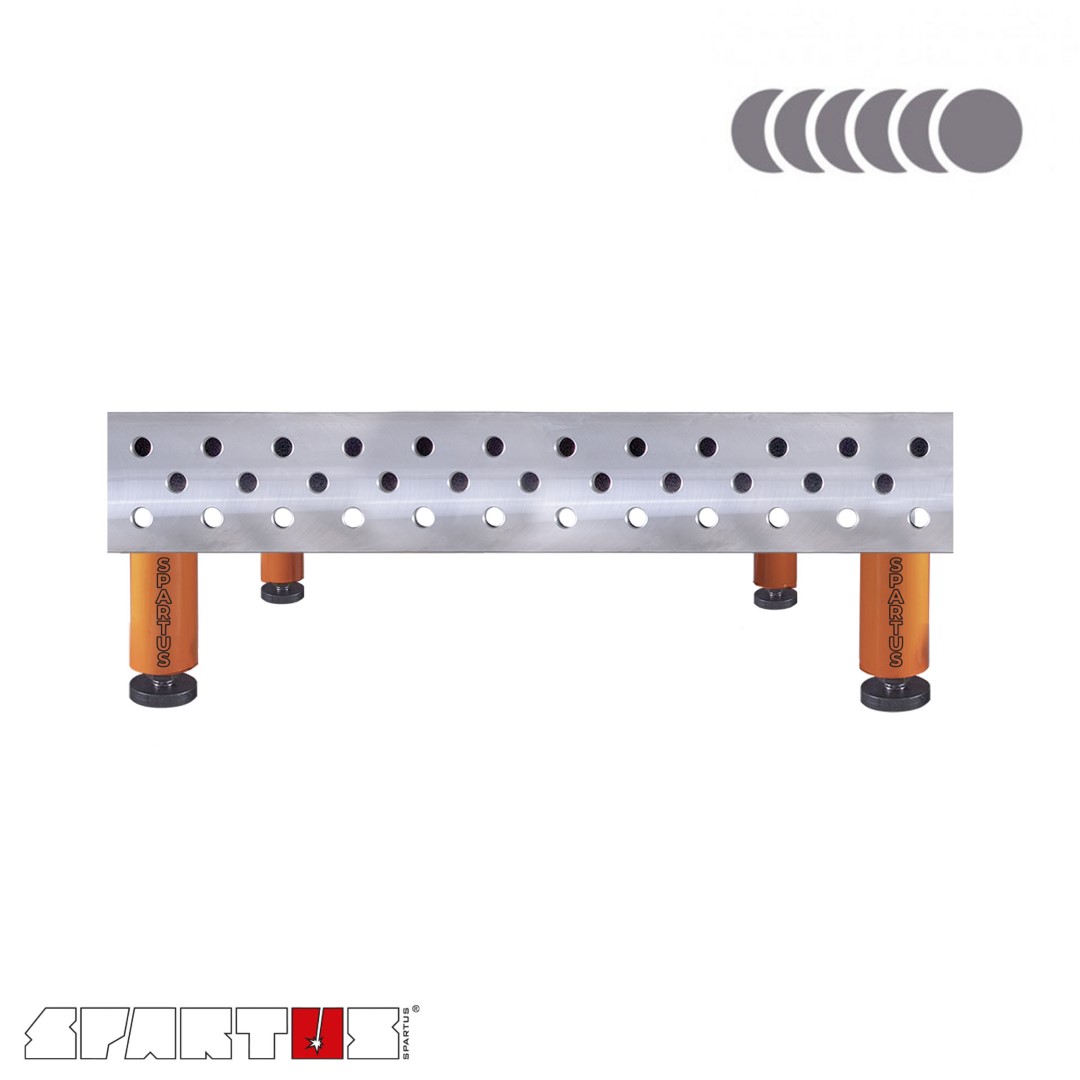

SP28W-12-12-200 HERMES 3D 1200 x 1200 x 200 [4 legs] 450mm 200mm
SP28W-12-12-350 HERMES 3D 1200 x 1200 x 200 [4 legs] 600mm 350mm

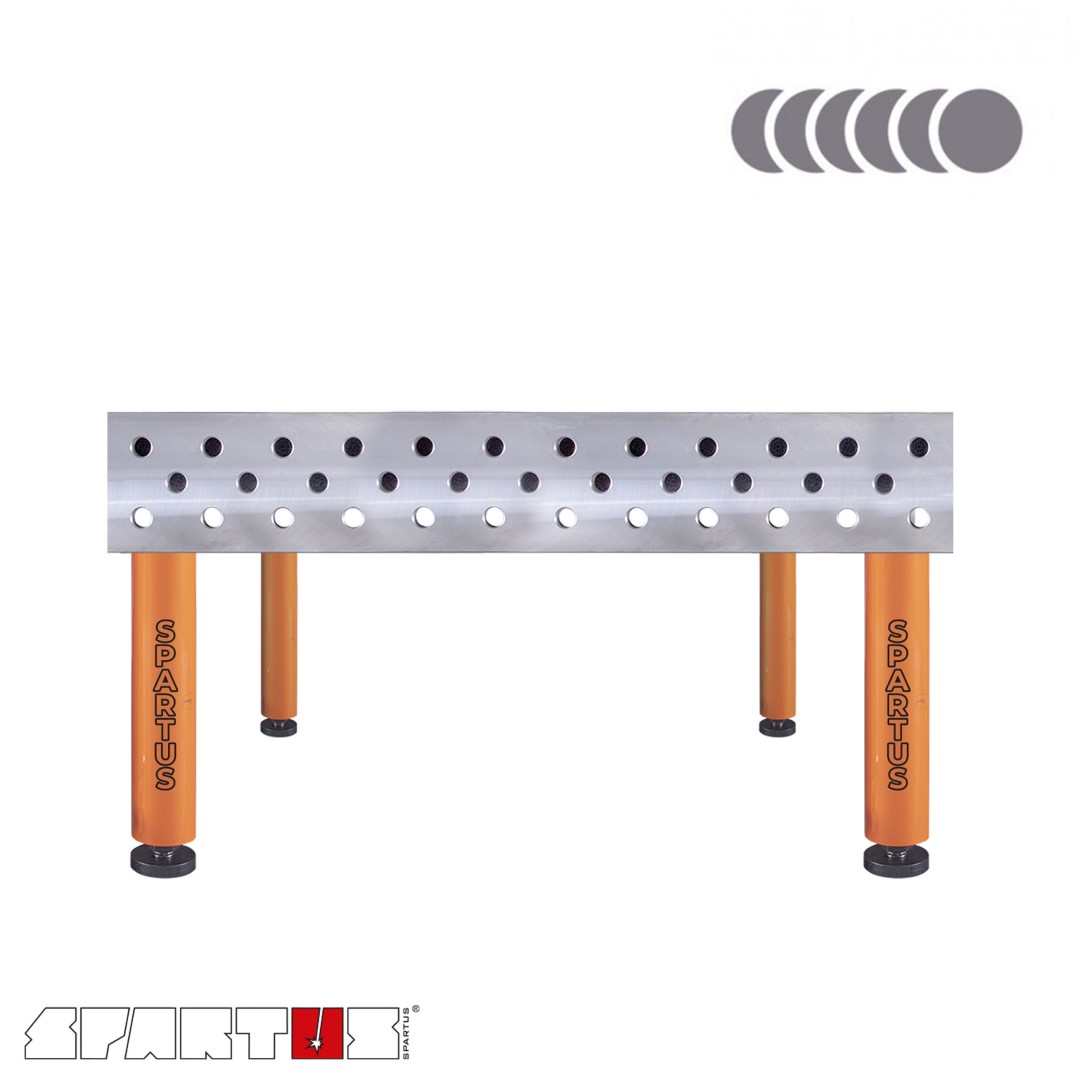

SP28W-12-12-450 HERMES 3D 1200 x 1200 x 200 [4 legs] 700mm 450mm

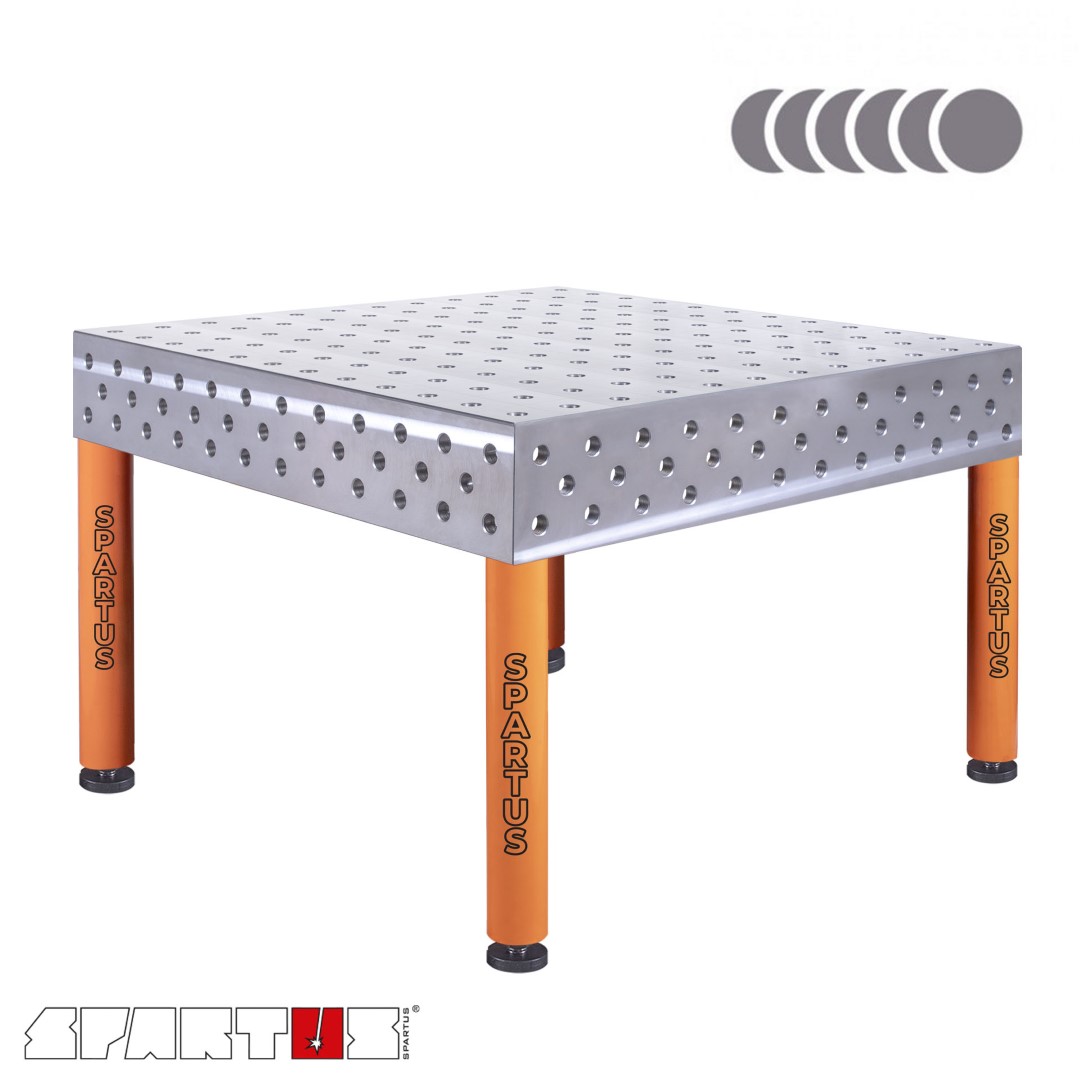

SP28W-12-12-550 HERMES 3D 1200 x 1200 x 200 [4 legs] 800mm 550mm

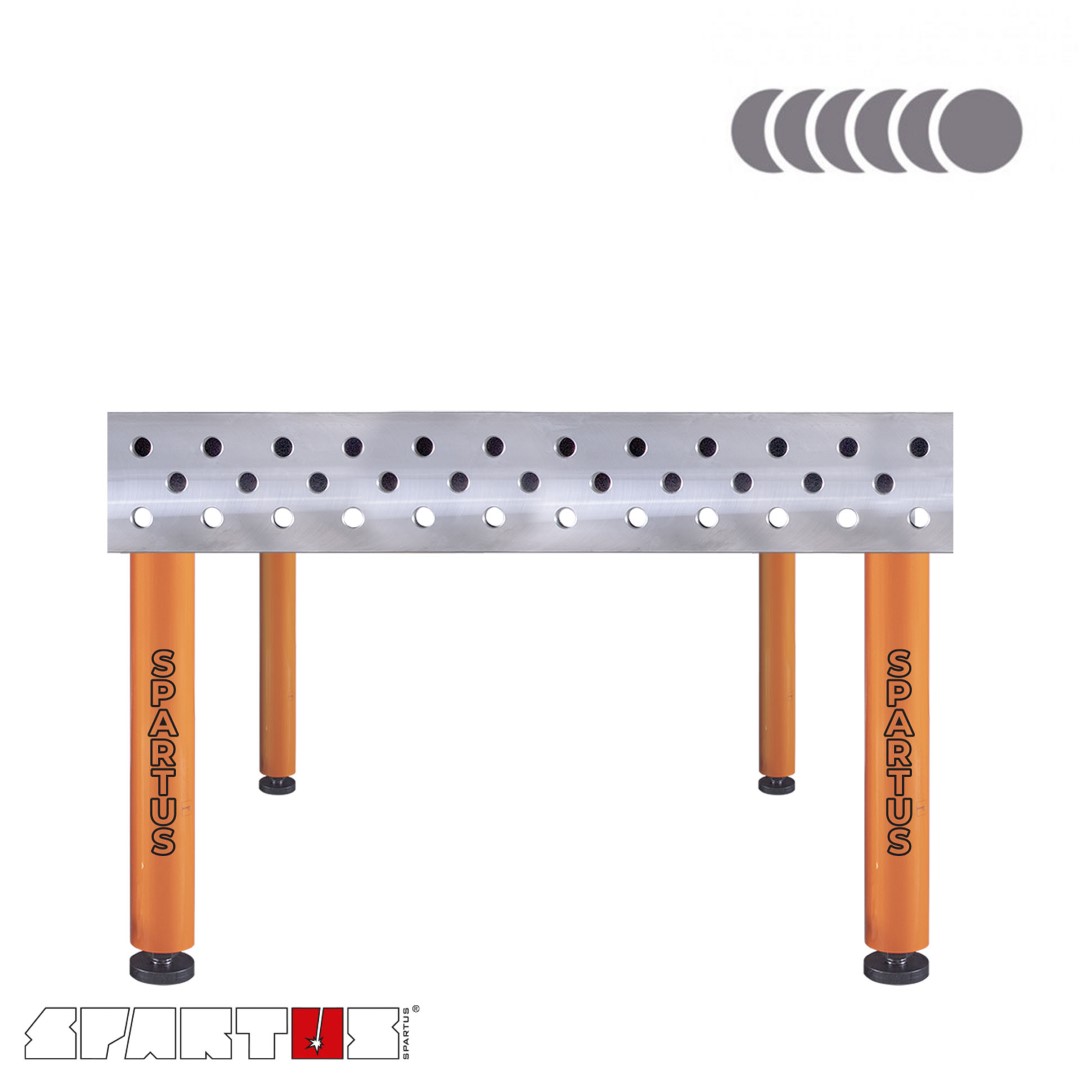

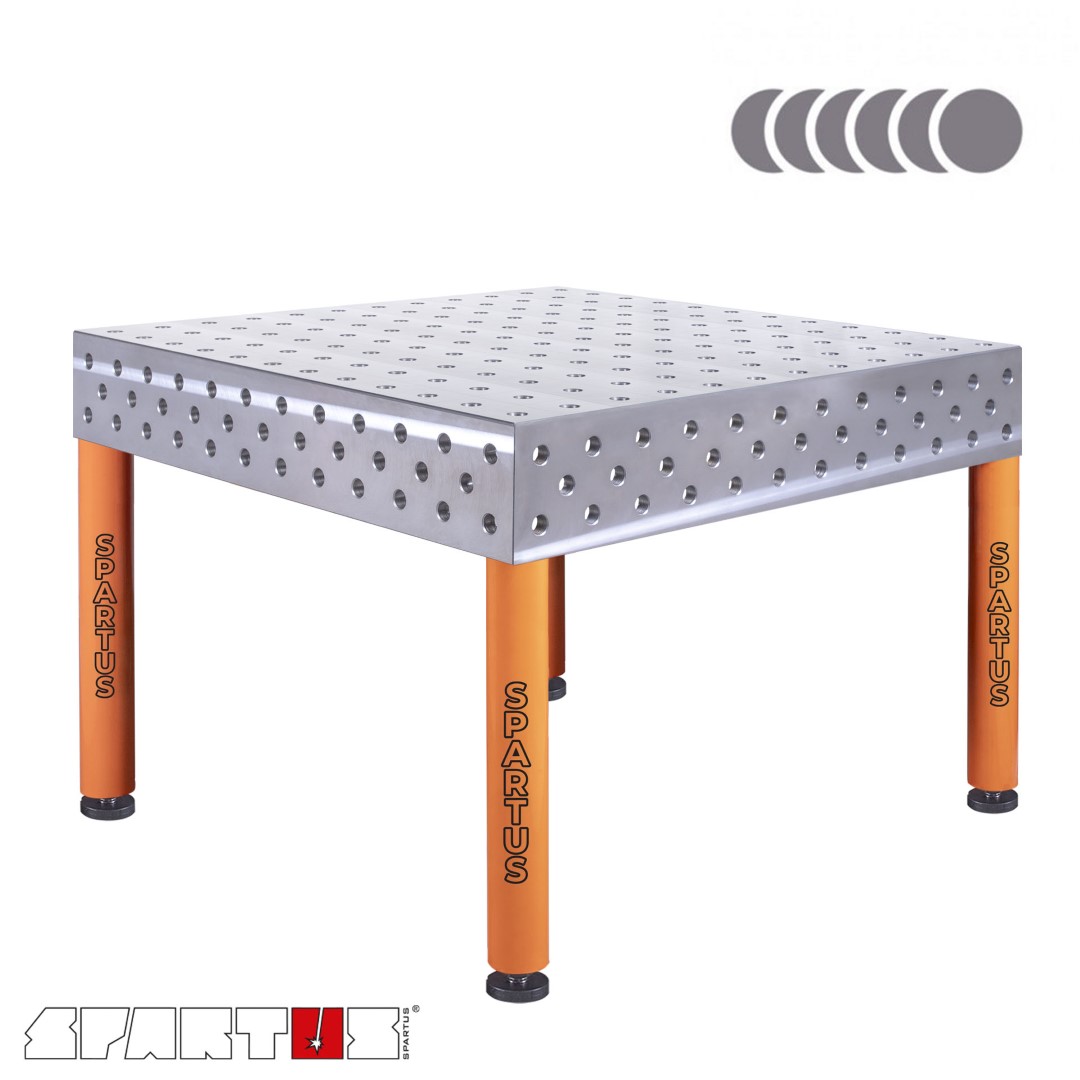

SP28W-12-12-620 HERMES 3D 1200 x 1200 x 200 [4 legs] 870mm 620mm
foot adjustment max + 5cm
CODE DESCRIPTION TOTAL TABLE HEIGHT LEG HEIGHT (L)

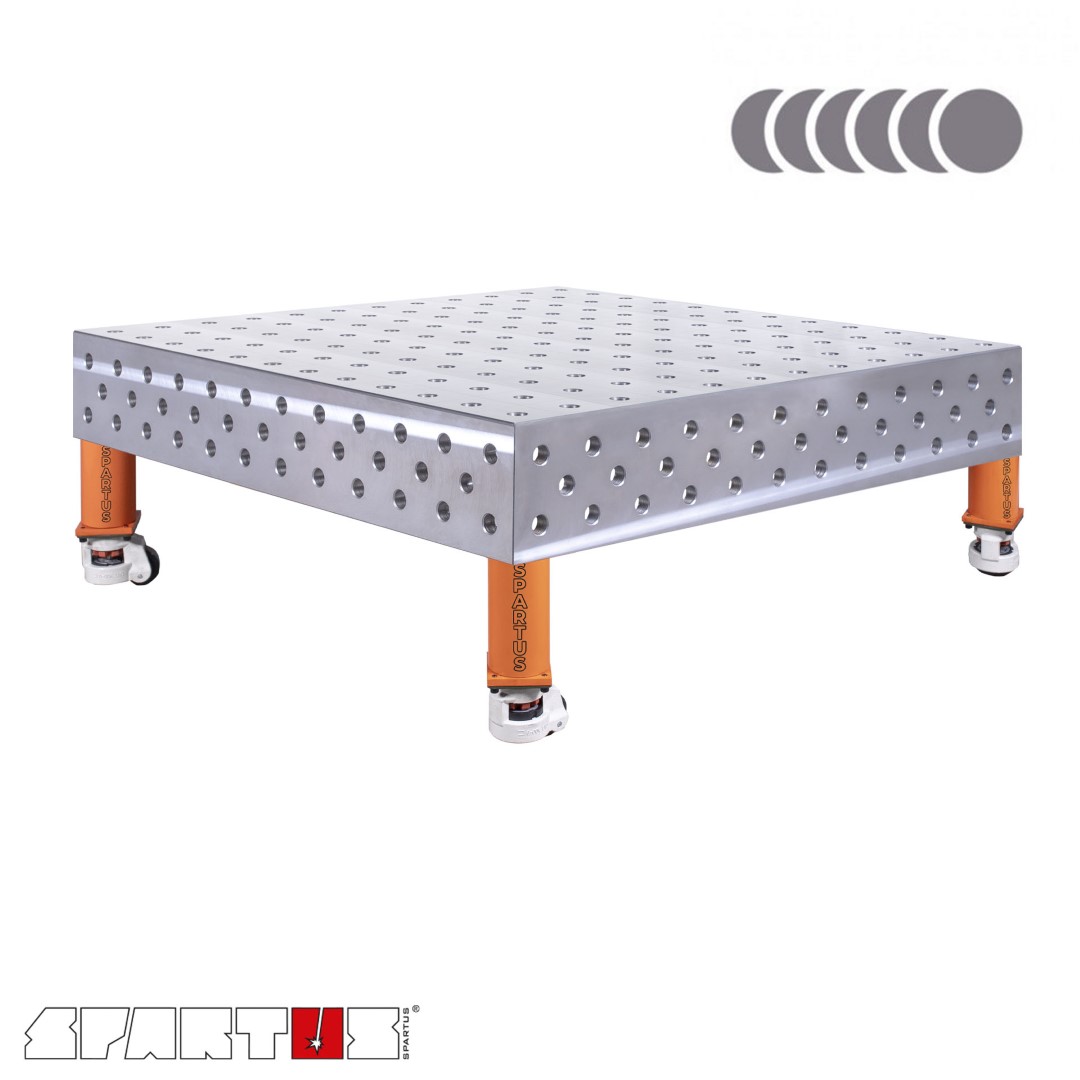

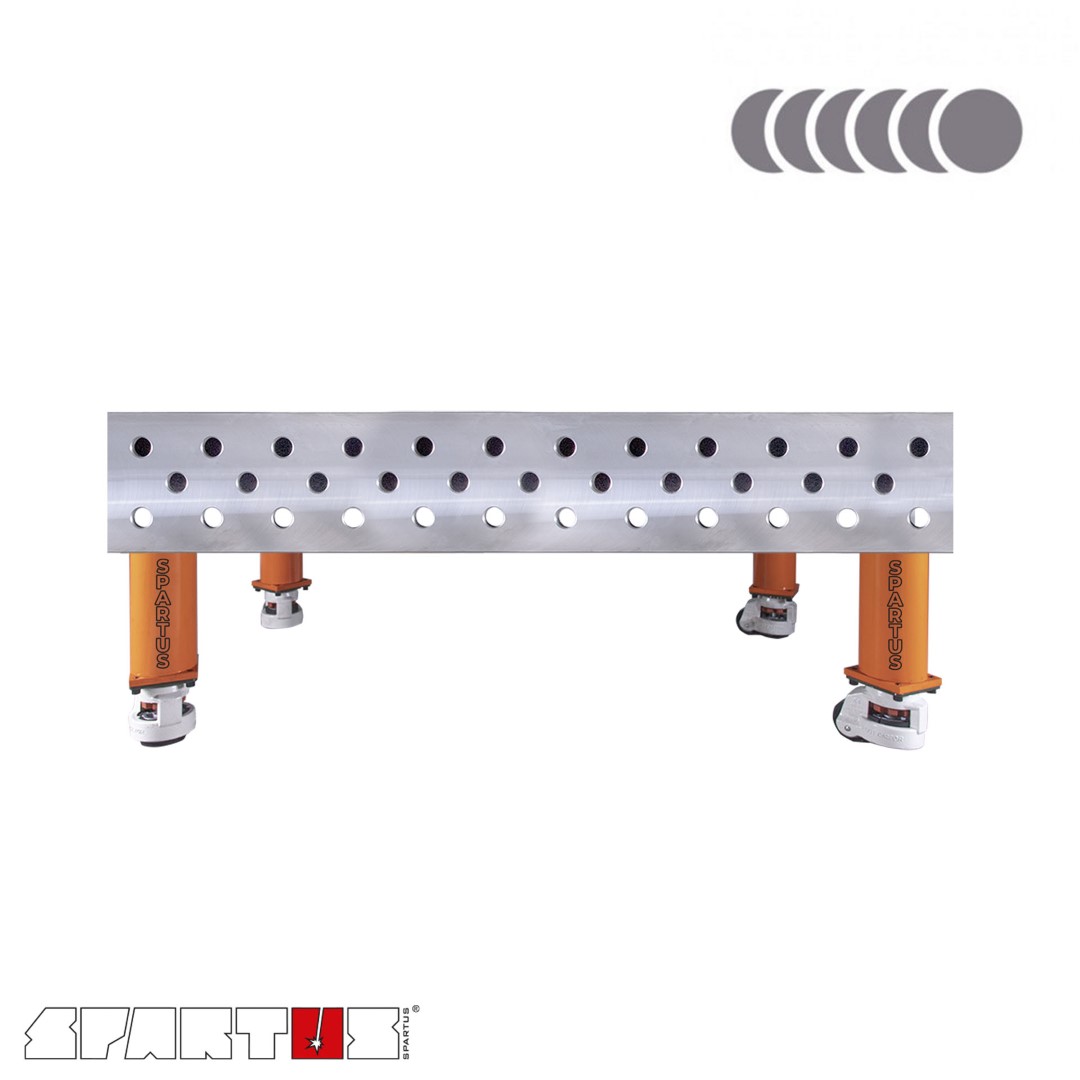

SP28W-12-12-200M HERMES 3D 1200 x 1200 x 200 [4 legs] 450mm 200mm

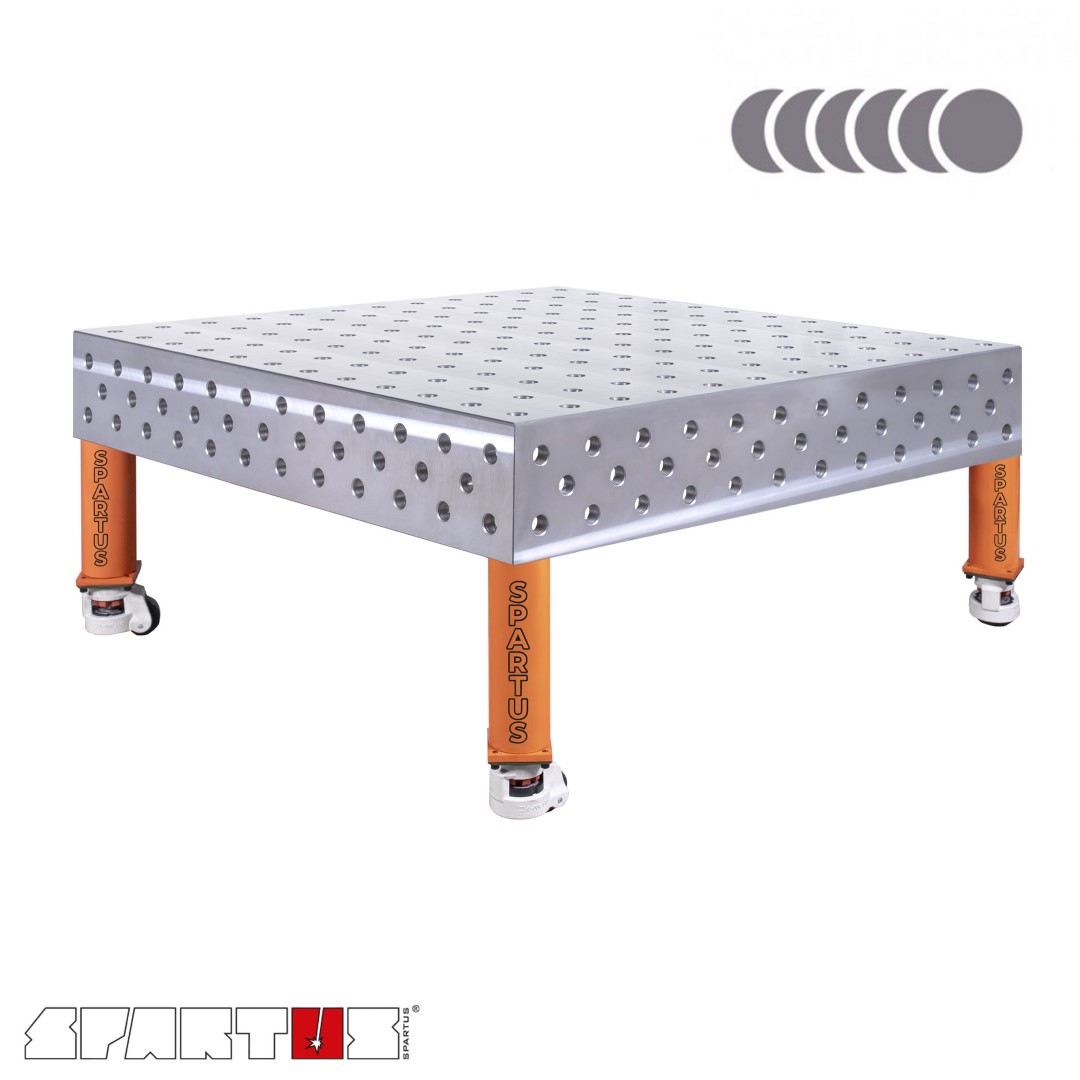

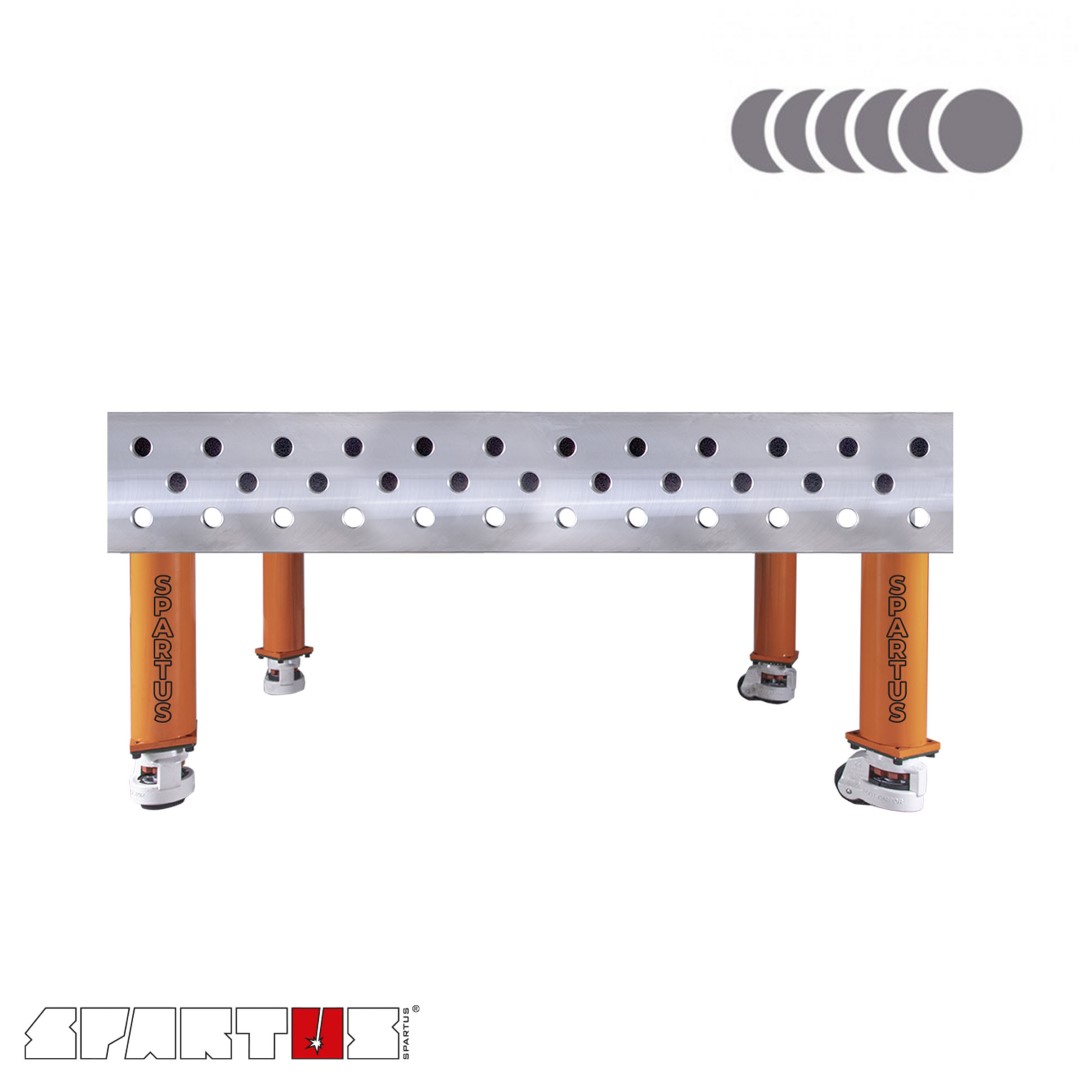

SP28W-12-12-350M HERMES 3D 1200 x 1200 x 200 [4 legs] 600mm 350mm

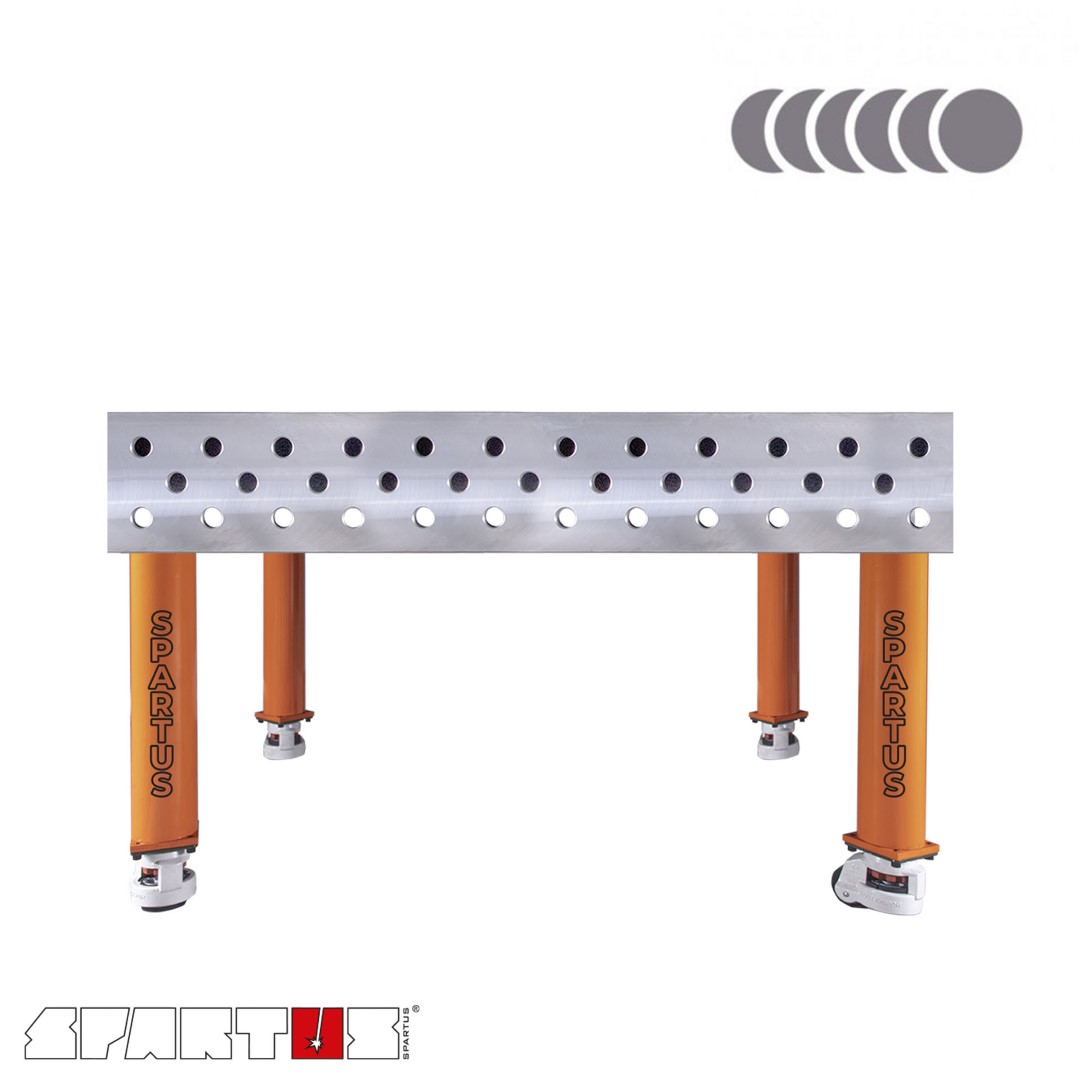

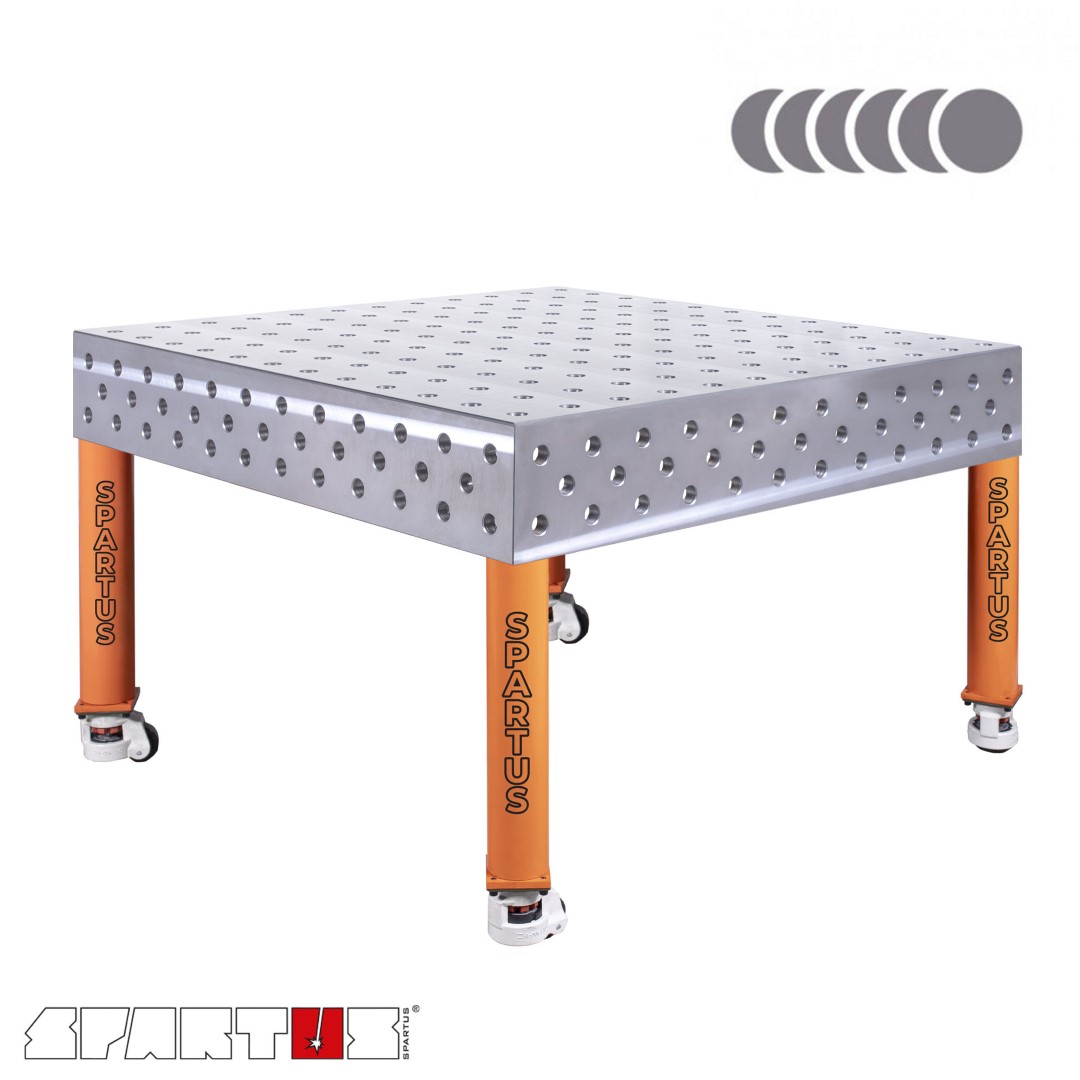

SP28W-12-12-450M HERMES 3D 1200 x 1200 x 200 [4 legs] 700mm 450mm

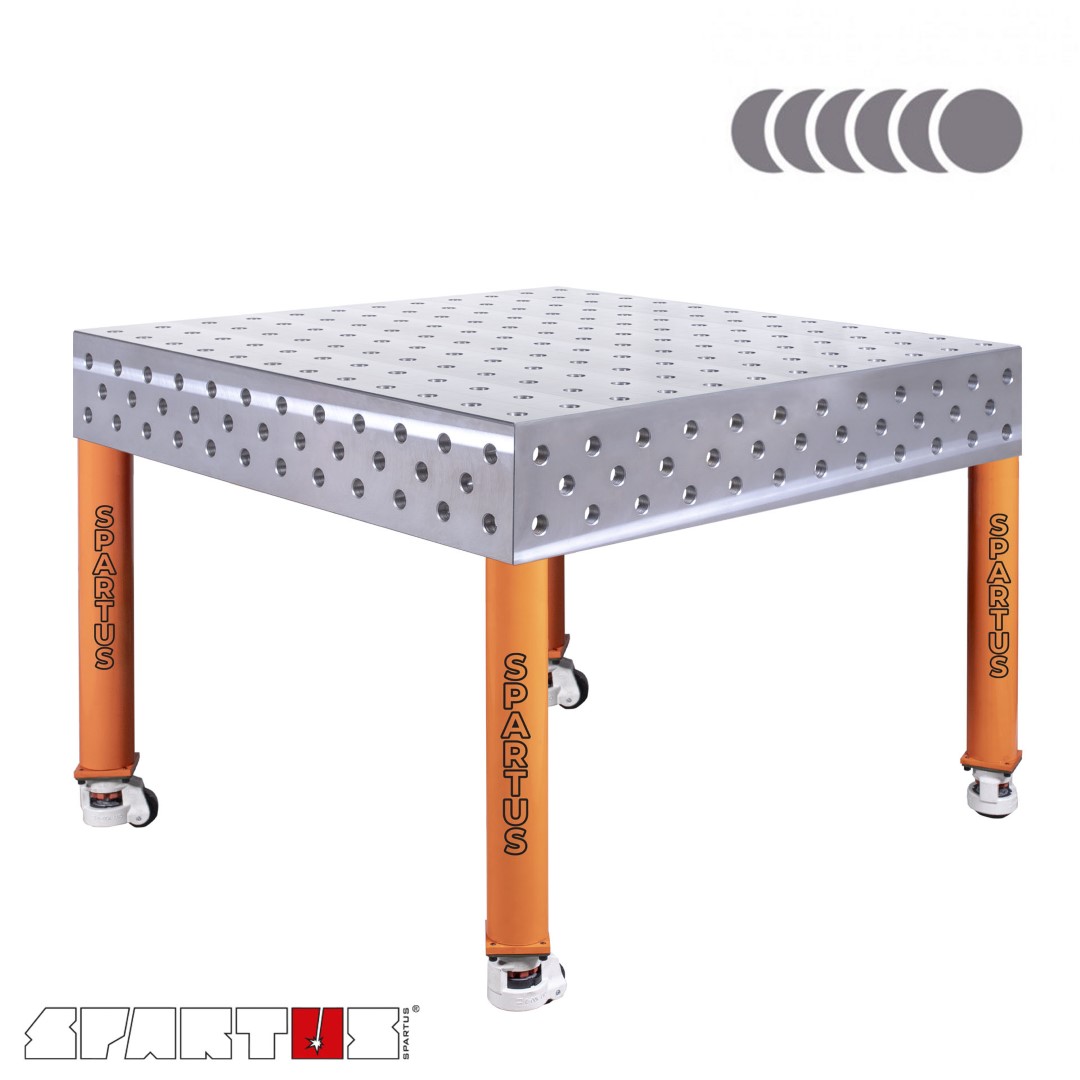

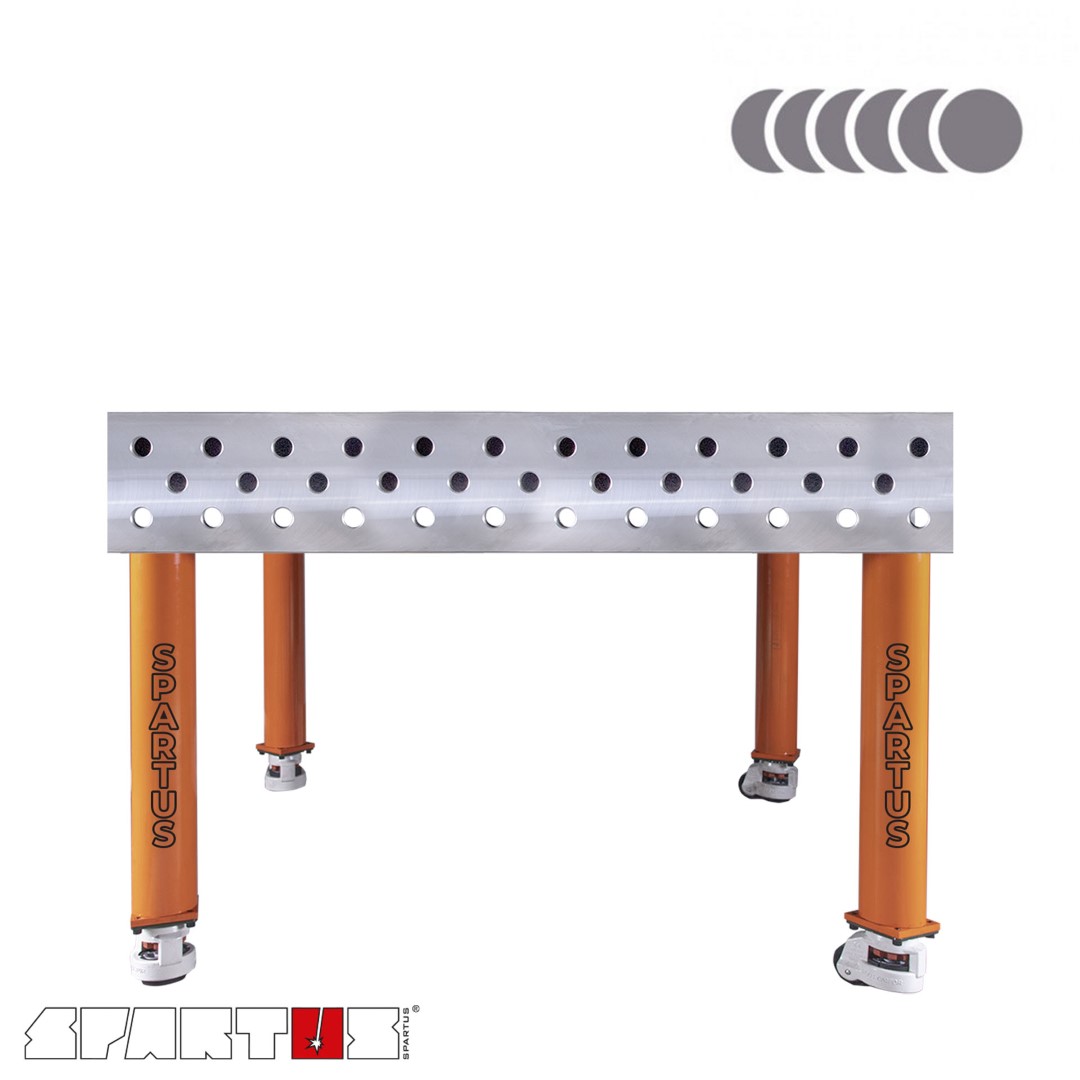

SP28W-12-12-550M HERMES 3D 1200 x 1200 x 200 [4 legs] 800mm 550mm

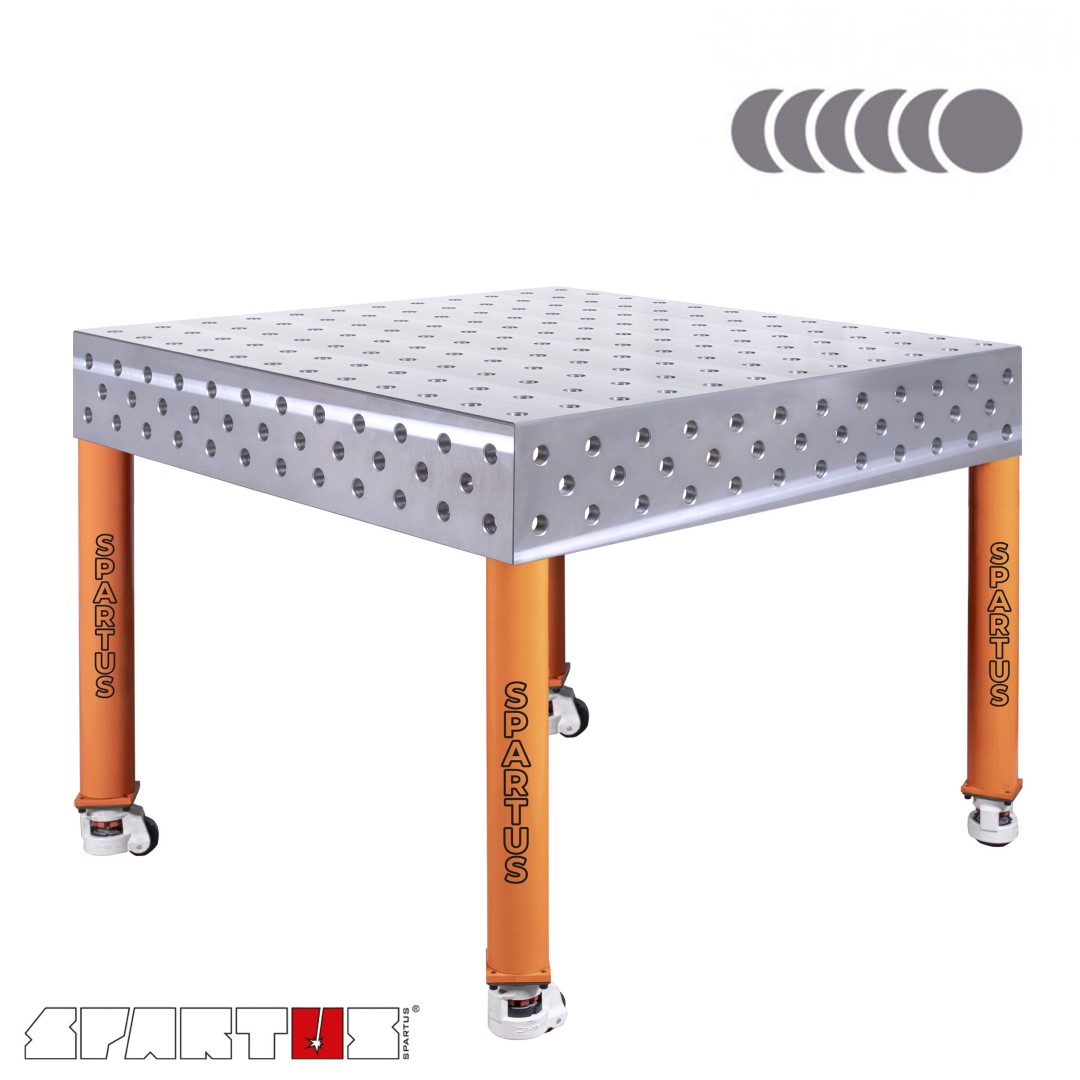

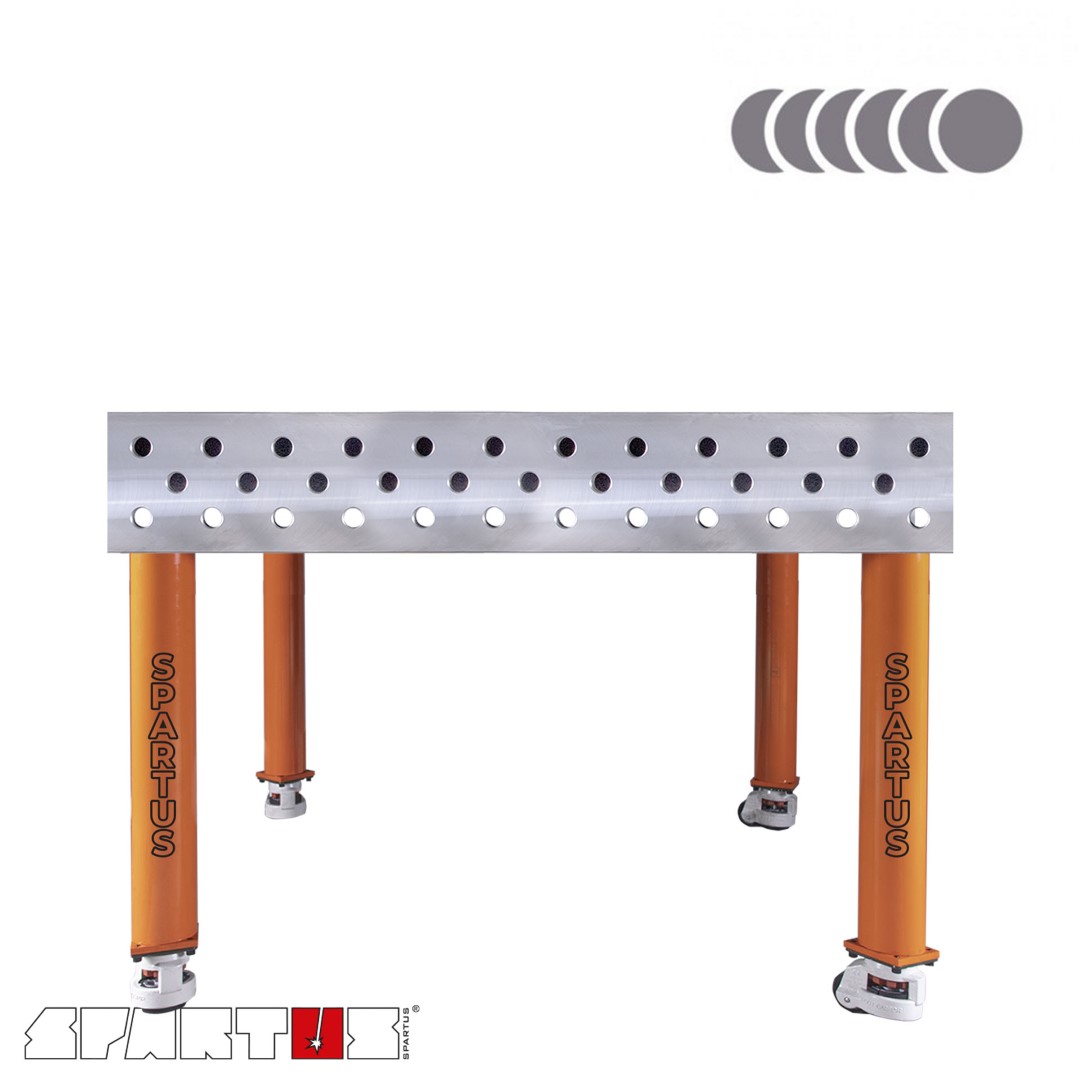

SP28W-12-12-620M HERMES 3D 1200 x 1200 x 200 [4 legs] 870mm 620mm
