English version


SPARTUS®
EasyTIG 205P DC



MODERN, LIGHTWEIGHT AND EASY TO USE TIG DC WITH PULSE

1 / 5

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding Current TIG [A] 5 – 200
Duty cycle [%] 35
TIG PARAMETERS
Start Amps, End Ampstak
Gas pre flow [s] 0 – 2
Up slope [s] 0 – 10
Down slope [s] 0 – 10
Gas post flow [s] 0 – 10
TIG PULSE mode tak
Pulse Amps [A] 5 – 200
Base Amps [A] 5– 200
Pulse Width [%] 5 – 95
Pulse frequency [Hz] 5 – 200
2T/4T Controltak
Arc ignition LIFT / HF
Output remote control tak
MMA PARAMETERS
MMA welding mode tak
Welding current MMA [A] 5 – 200
Hot Start range [%] 0 – 10
Arc Force range [%] 0 – 10
No-load voltage [V] 89
OTHER
Current consumpiton [A] TIG 34 / MMA 43
Power factor (cosφ) 0,75
Efficiency η [%] 85
Insulation classH
Protection classIP23
Weight [kg]7,9
Dimensions [mm]420 × 135 × 240
TIG remote control Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

Spartus Easy 205P DC. It is a modern digitally controlled inverter welder, constructed on the basis of IGBT and PWM technology. Allows welding TIG and MMA. It is powered with single-phase 230V source power.

Small, light and versatile. Ideal for welding steel and stainless steel. Built-in adjustable pulse welding, allows you to connect even very thin elements. Maximum welding current for both methods is 200A, so Spartus EasyTIG 205P DC will also work on light work production.

Easy to use and intuitive control panel function allows precise control of all important welding parameters for TIG and MMA.

Examples of application: portable repair, working workshop, lightweight constructions, maintenance.

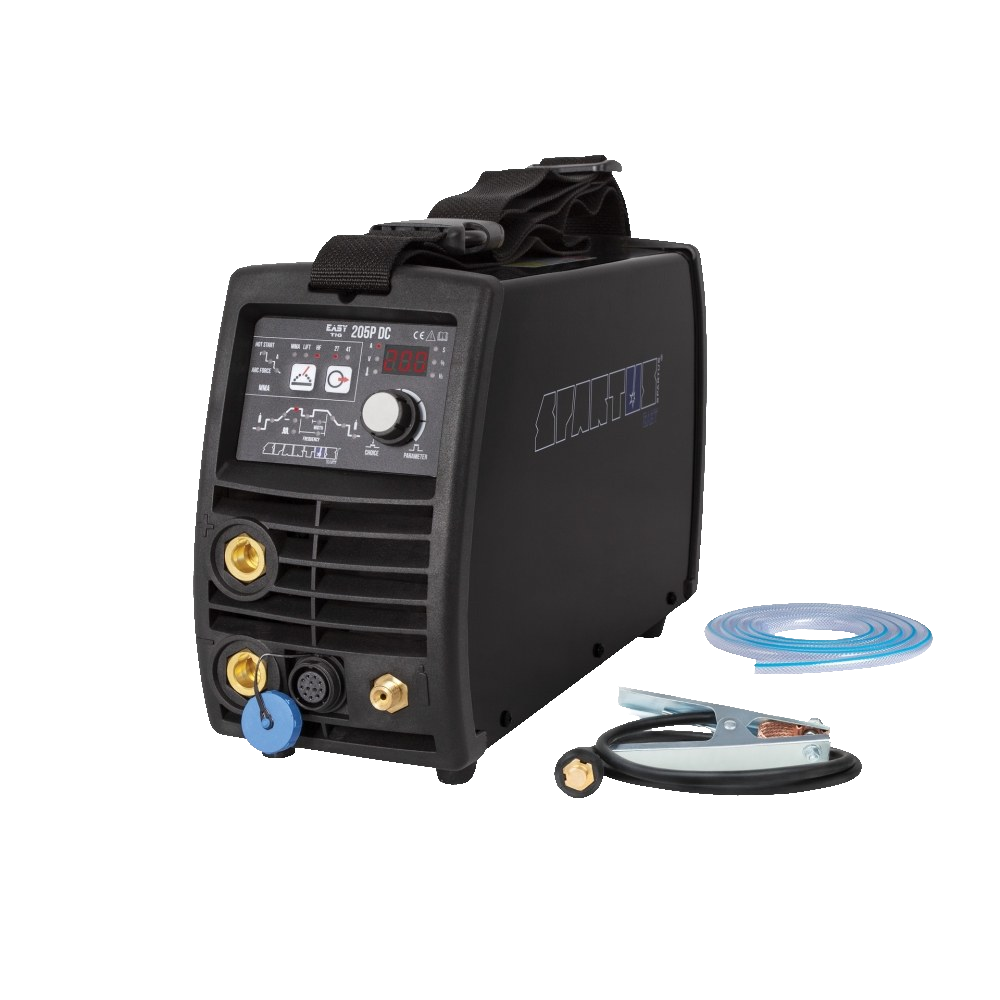

Device SPARTUS® EasyTIG 205P DC:

Device SPARTUS® EasyTIG 205P DC

3m work clamp

Gas hose

User's manual

Device price [EUR]:
cena

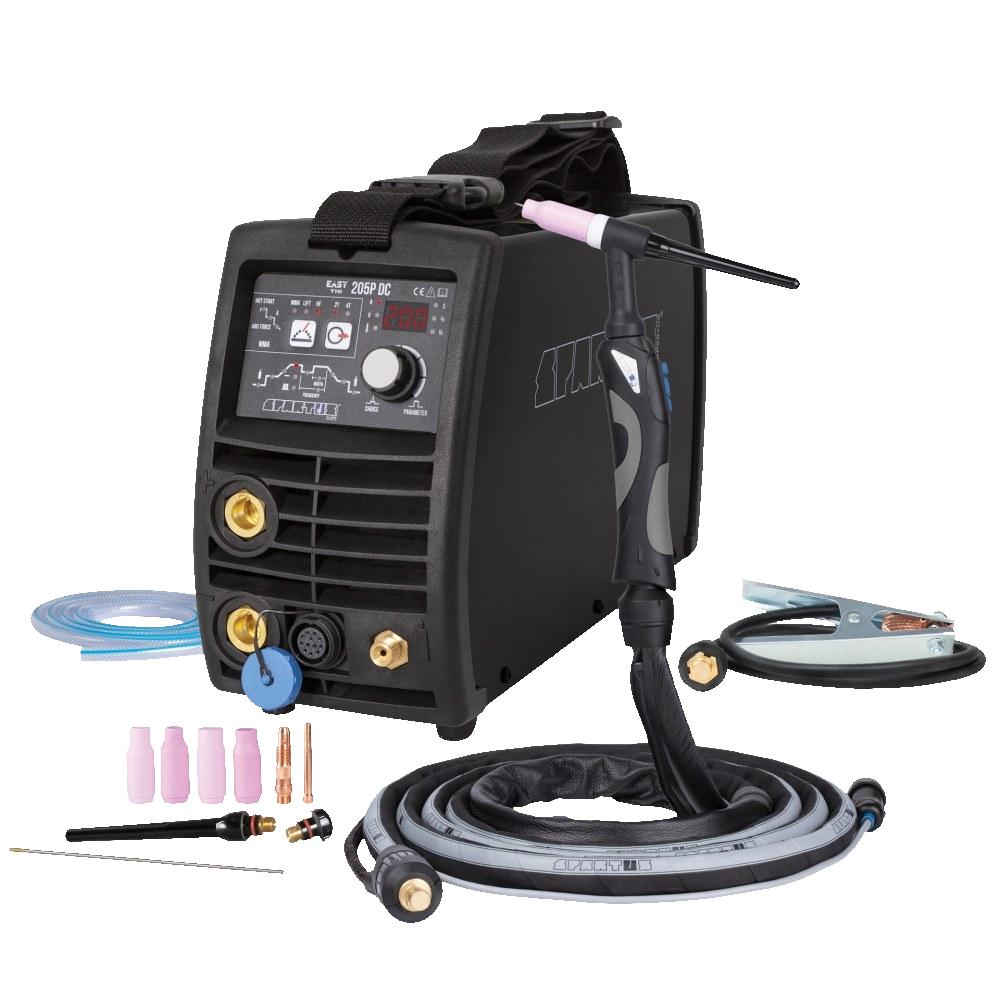

EasyTIG 205P DC package mini17 4m:

Device SPARTUS® EasyTIG 205P DC

TIG torch SPARTUS® SPE 17 4B X 4m

TIG equipment with TIG Torch parts

Electrode holder

3m work clamp

Gas hose

User's manual

Package price [EUR]:
cena

EasyTIG 205P DC package mini17 8m:

Device EasyTIG 205P DC

TIG torch mini SPE 17 4B X 8m

TIG equipment with TIG Torch parts

Electrode holder

5m work clamp

Gas hose

User's manual

Package price [EUR]:
cena

TIG Gun SPARTUS Easy 17 4B X 4m/8m:

Flexible set of Easy X cables

1 meter of leather handle

mini handle

Remote control UP & DOWN

Removable microswitch
