English version


SPARTUS®
ProTIG 401PW AC/DC



MODERN AND EFFICIENT TIG AC / DC WITH PULSE

fota-slide2
fota-slide2
fota-slide2

1 / 8



zdalne sterowanie

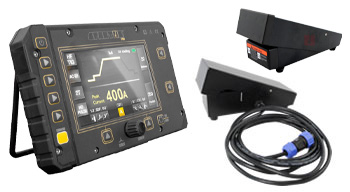

The device has ability to work with remote control devices such as:
wireless pilot, foot pedal.

zdalne sterowanie

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding Current TIG [A] 10 – 400
Duty cycle [%] 60
TIG PARAMETERS
Gas pre flow [s] 0,1 – 2
Up slope [s] 0 – 10
Down slope [s] 0 – 10
Gas post flow [s] 0 – 10
TIG PULSE mode tak
Pulse Amps [A] 10 – 400
Base Amps [A] 10 – 400
Pulse Width [%] 5 – 95
Pulse frequency [Hz] 0,5 – 999
AC frequency [Hz] 50 – 250
AC Wave Forms Square, Sinusoidal, Triangular
AC balance [%] 10 – 99
2T/4T Control tak
Arc ignition LIFT / HF
Output remote control tak
MMA PARAMETERS
MMA welding mode [AC/DC] tak
Welding current MMA [A] 10 – 400
Hot Start range [%] 0 – 10
Arc Force range [%] 0 – 10
No-load voltage [V] 74
OTHER
Current consumpiton [A] AC: TIG 25.1 / MMA 19.4
DC: TIG 25.7 / MMA 32.7
Power factor(cosφ) 0,7
Efficiency η [%] 85
Insulation class H
Protection class IP21S
Water cooler tak
Tank capacity [l] 5
Weight [kg] 78.5
Dimensions [mm] 1150 × 600 × 1200
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS® ProTIG 401P AC/DC is a inverter welder in a modern edition. It allows TIG AC/DC and MMA AC/DC welding with current up to 400A. The device is powered from a 400V three-phase network.

Thanks to the solutions used, the ProTIG 401P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum.

ProTIG 401P AC/DC has functions supporting the welding process in TIG method:

- output AC waveforms square, sinusoidal, triangular,
- 2T/4T Trigger Control,
- AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
- up slope and down slope adjustment,
- SPOT welding.

ProTIG 401P AC/DC enables MMA AC and MMA DC welding. The process of joining metals in this method is additionally supported by functions such as:

- Arc Force
- Hot Start.
Additionally the device has 10 memory channels. The user can easily save and recall the most used settings.

The ProTIG 401PW AC/DC model is additionally equipped with an integrated liquid cooler, whichensures efficient cooling of the torch during welding with high currents. The whole is placed ona transport cart with space for a shielding gas cylinder.

Modern design, LCD function panel and the possibility of wireless control in combination with high-class components makes the ProTIG 401P AC/DC stand out on the market.
The professional device of the SPARTUS® Pro line is perfect suited to the production sector and industry.

Device SPARTUS® ProTIG 401PW AC/DC:

Device ProTIG 401PW AC/DC

Cooler

4 wheel drive set

3m work clamp

Gas hose

User's manual

ProTIG 401PW AC/DC packages 18 4m / 18 8m

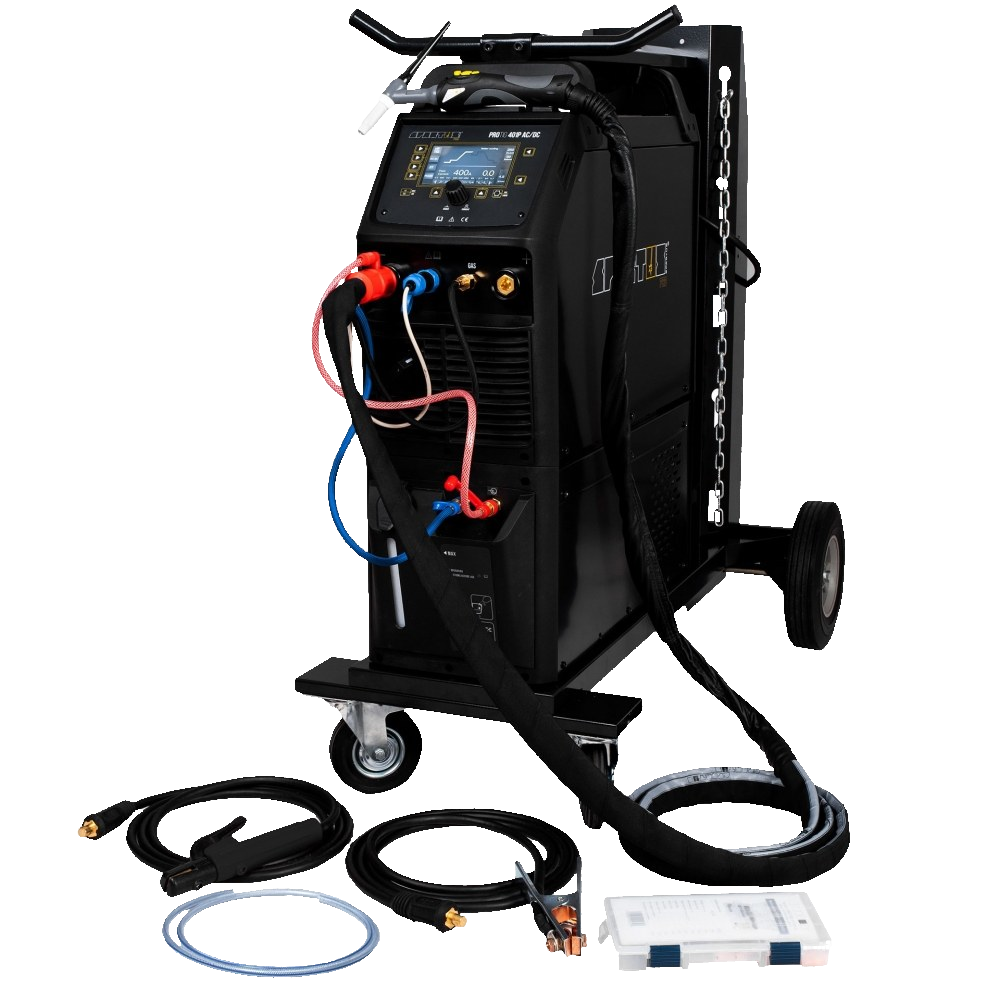

Device ProTIG 401PW AC/DC Device ProTIG 401PW AC/DC
Cooler Cooler
4 wheel drive set 4 wheel drive set
TIG torch SPP 18 4B X 4m TIG torch SPP 18 4B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch SPP current-carrying capacity 350A DC / 250A AC

ProTIG 401PW AC/DC packages 18SC 4m / 18SC 8m

Device ProTIG 401PW AC/DC Device ProTIG 401PW AC/DC
Cooler Cooler
4 wheel drive set 4 wheel drive set
TIG torch SPP 18SC 4B X 4m TIG torch SPP 18SC 4B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch SPP18 current-carrying capacity 400A DC / 280A AC
