English version


SPARTUS®
ProTIG 401P AC/DC



MODERN AND EFFICIENT TIG AC / DC WITH PULSE

1 / 7



zdalne sterowanie
The device has ability to work with remote control devices such as:
wireless pilot, foot pedal.

zdalne sterowanie

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding Current TIG [A] 10 – 400
Duty cycle [%] 60
TIG PARAMETERS
Gas pre flow [s] 0,1 – 2
Up slope [s] 0 – 10
Down slope [s] 0 – 10
Gas post flow [s] 0 – 10
TIG PULSE mode tak
Pulse Amps [A] 10 – 400
Base Amps [A] 10 – 400
Pulse Width [%] 5 – 95
Pulse frequency [Hz] 0,5 – 999
AC frequency [Hz] 50 – 250
AC Wave Forms Square, Sinusoidal, Triangular
AC balance [%] 10 – 99
2T/4T Control tak
Arc ignition LIFT / HF
Output remote control tak
MMA PARAMETERS
MMA welding mode [AC/DC] tak
Welding current MMA [A] 10 – 400
Hot Start range [%] 0 – 10
Arc Force range [%] 0 – 10
No-load voltage [V] 74
OTHER
Current consumpiton [A] AC: TIG 25.1 / MMA 19.4
DC: TIG 25.7 / MMA 32.7
Power factor(cosφ) 0,7
Efficiency η [%] 85
Insulation class H
Protection class IP21S
Weight [kg] 31
Dimensions [mm] 700 × 260 × 480
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS® ProTIG 401P AC/DC is a inverter welderin a modern edition. It allows TIG AC / DC and MMA AC / DC welding with currentup to 400A.The device is powered from a 400V three-phase network.

Thanks to the solutions used, the ProTIG 401P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The device is equipped with a pulsewelding function, which makes the machine perfect for welding very thin sheets and aluminum.

ProTIG 401P AC/DC has functions supporting the welding process in TIG method:

output AC waveforms: square, sinusoidal, triangular,
2T/4T Trigger Control,
AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
up slope and down slope adjustment,
SPOT welding.

ProTIG 401P AC/DC enables MMA AC and MMA DC welding.The process of joining metals in thismethod is additionally supported by functions such as:

- Arc Force
- Hot Start.

Additionally the devicehas 10 memory channels.The user can easily save and recall themost used settings.

Modern design, LCD function panel and the possibility of wireless control in combination withhigh-class components makes the ProTIG 401P AC/DC stand out on the market.
The professional device of the SPARTUS® Pro line is perfect suited to the production sector andindustry.

Device SPARTUS® ProTIG 401P AC/DC:

Device ProTIG 401P AC/DC

3m work clamp

Gas hose

User's manual

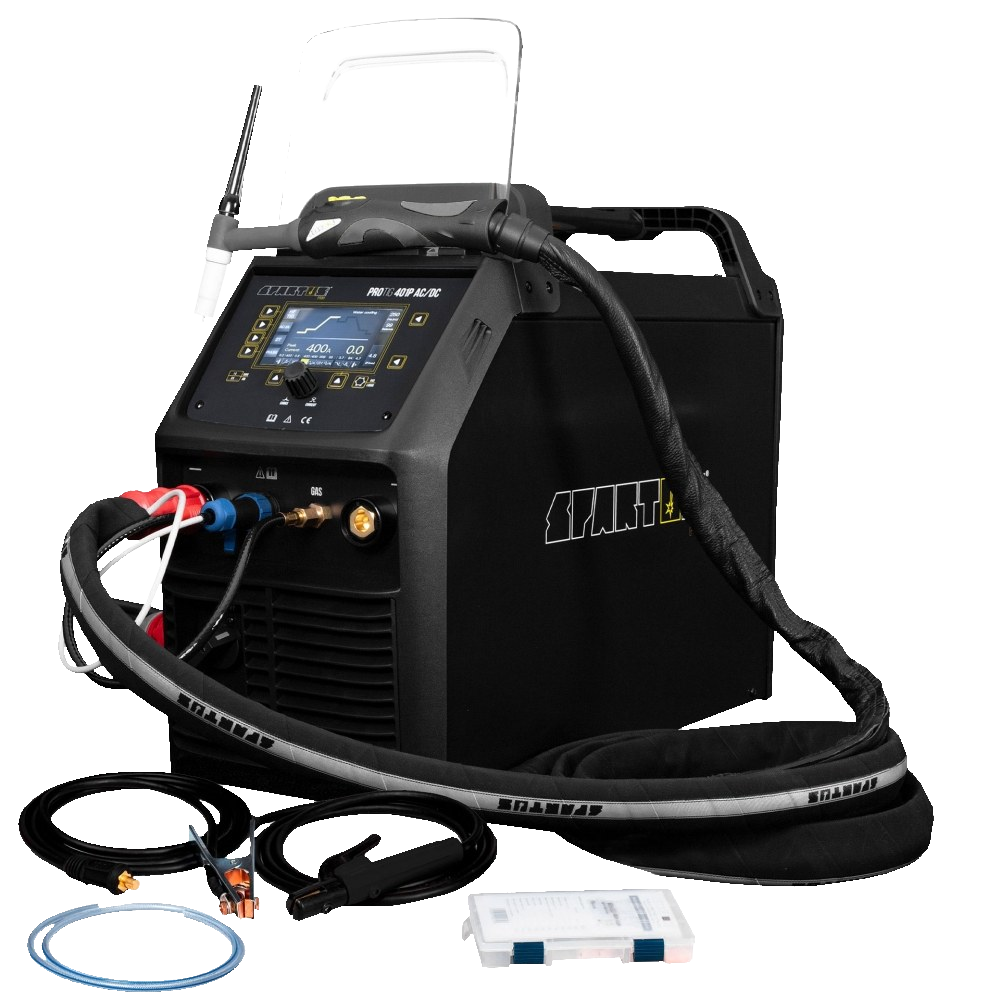

ProTIG 401P AC/DC packages 26 4m / 26 8m

Device ProTIG 401P AC/DC Device ProTIG 401P AC/DC
TIG torch SPP 26 4B X 4m TIG torch SPP 26 4B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
