SPARTUS®
EasyTIG 210P ACDC
EASY TO USE AND VERSATILE. PERFECT FOR WELDING STAINLESS STEEL, ACID-RESISTANT STEEL, AND ALUMINIUM
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| TIG welding current [A] | 10 – 200 |
| Duty cycle [%] | 35 |
| TIG PARAMETERS | |
| Gas pre flow [s] | 0 – 2 |
| Up slope [s] | 0 – 10 |
| Down slope [s] | 0 – 10 |
| Gas post flow [s] | 0 – 10 |
| Pulsation |  |
| Pulse Amps [A] | 10 – 200 [AC], 10 – 170 [DC] |
| Pulse Width [%] | 5 – 95 |
| Pulse frequency [Hz] | 0.5 – 200 |
| 2T/4T Control | |
| Control options | control in torch UP&DOWN, wired foot control, control in the handle potentiometer |
| Arc ignition | LIFT / HF |
| MMA PARAMETERS | |
| MMA welding mode | |
| MMA welding current [A] | 10 – 170 |
| Duty cycle [%] | 35 |
| Hot Start | |
| Arc Force | |
| No-load voltage [V] | 52 |
| OTHER | |
| Current consumpiton [A] | TIG DC 28.3A / TIG AC 32.5A / MMA DC 40.7A / MMA AC 39.1A |
| Power factor (cosφ) (cosφ) | 0,6 |
| Efficiency η [%] | TIG 85 |
| Insulation class | H |
| Protection class | IP21S |
| Weight [kg] | 8.7 |
| Dimensions [mm] | 450 × 135 × 230 |
Description:
SPARTUS® Easy TIG 210P AC/DC is a modern, digitally controlled inverter welder designed with IGBT transistor technology. The machine is exceptionally easy to use thanks to an intuitive digital control panel that provides quick access to all key functions.
WIDE CAPABILITIES
The welder supports TIG AC/DC and MMA AC/DC modes, allowing for versatile use across various industries. In TIG DC with pulse mode, it efficiently welds thin components made of steel, stainless steel, and acid-resistant steel. Meanwhile, TIG AC enables precise welding of aluminium and its alloys.
MODERN SOLUTIONS
The machine is powered by a single-phase 230V supply and is compatible with welding torches equipped with remote control on the handle. This allows the operator to maintain full control over the welding process without having to interrupt work.
MOBILITY AND COMPACT SIZE
SPARTUS® Easy TIG 210P AC/DC weighs only 8.7kg, making it extremely portable and easy to transport. It’s an ideal solution for service work, assembly tasks, as well as production applications.
PRACTICAL APPLICATION
The welder performs excellently in a variety of working conditions. Example applications include:
- field repair work,
- workshop tasks,
- maintenance operations,
- steel and aluminium constructions.
EasyTIG 210P AC/DC:
SPARTUS® EasyTIG 210P AC/DC
3m work clamp
gas hose
user's manual

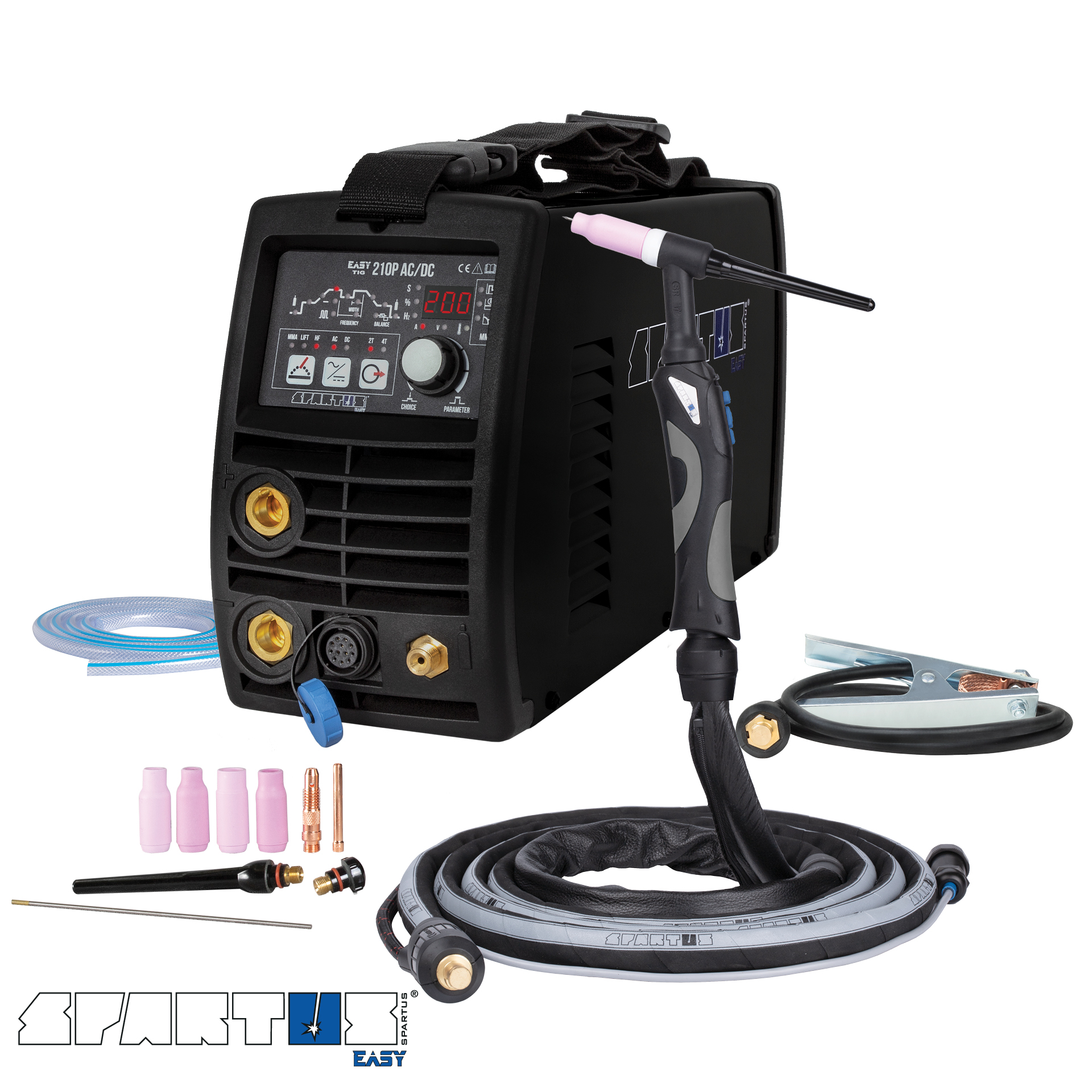

EasyTIG 210P DC package 17 4m / 17 8m
| SPARTUS® EasyTIG 210P AC/DC | SPARTUS® EasyTIG 210P AC/DC |
| TIG torch TIG SPE 17 4B X 4m | TIG torch TIG SPE 17 4B X 8m |
| set of consumagles | set of consumagles |
| work clamp | work clamp |
| gas hose | gas hose |
| user's manual | user's manual |
