English version


SPARTUS®
EasyTIG 200P AC/DC



VERSATILE TIG AC / DC PULSE

1 / 8

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current TIG [A] AC HF 10 - 200  /  AC Lift 30 - 200  /  DC 10 - 20
Duty cycle TIG [%] 35
PARAMETRY TIG
Start Amps, End Amps tak
Gas pre flow [s] 0 – 1
Up slope [s] 0 – 5
Down slope [s] 0 – 5
Gas post flow [s] 0.1 – 10
Pulse mode tak
Pulse Amps [A] [AC/DC] 10 – 200
Base Amps [A] [AC/DC] 10 – 200
Pulse width [%] 5 – 100
Pulse frequency [Hz] 0.5 – 200
AC frequency [Hz] 40 – 250
AC Balance[%] 20 - 80
SPOT welding tak
Arc ignition LIFT / HF
MMA PARAMETERS
Coated electrode MMA welding mode tak
Welding curent MMA [A] 10 - 200
Duty cycle MMA [%] 35%
Hot Start range [%] 0 – 10
Arc Force range [%] 0 – 10
No-load voltage [V] 60
OTHER
Current consumption [A] TIG 36 / MMA 43
Power factor (cosφ) 0.73
Efficiency η [%] 85
Insulation class H
Protection class IP21s
Weight [kg] 11
Dimensions [mm] 490 × 225 × 340
Download data sheet Click on photo to enlarge Click on photo to nlarge Click on photo to nlarge Click on photo to nlarge Click on photo to nlarge Click on photo to nlarge Click on photo to nlarge Click on photo to nlarge

Description:

SPARTUS® EasyTIG 200P AC/DC is digitally controlled inverter welding machine, constructed on the basis of IGBTs and PWM technology. Allows welding AC/DC TIG and AC/DC MMA. It is powered with single-phase 230V source power.

Machine enables two methods of arc ignition: TIG HF and TIG Lift. In addition, it has a built-in pulse welding function, which is useful to join very thin elements.

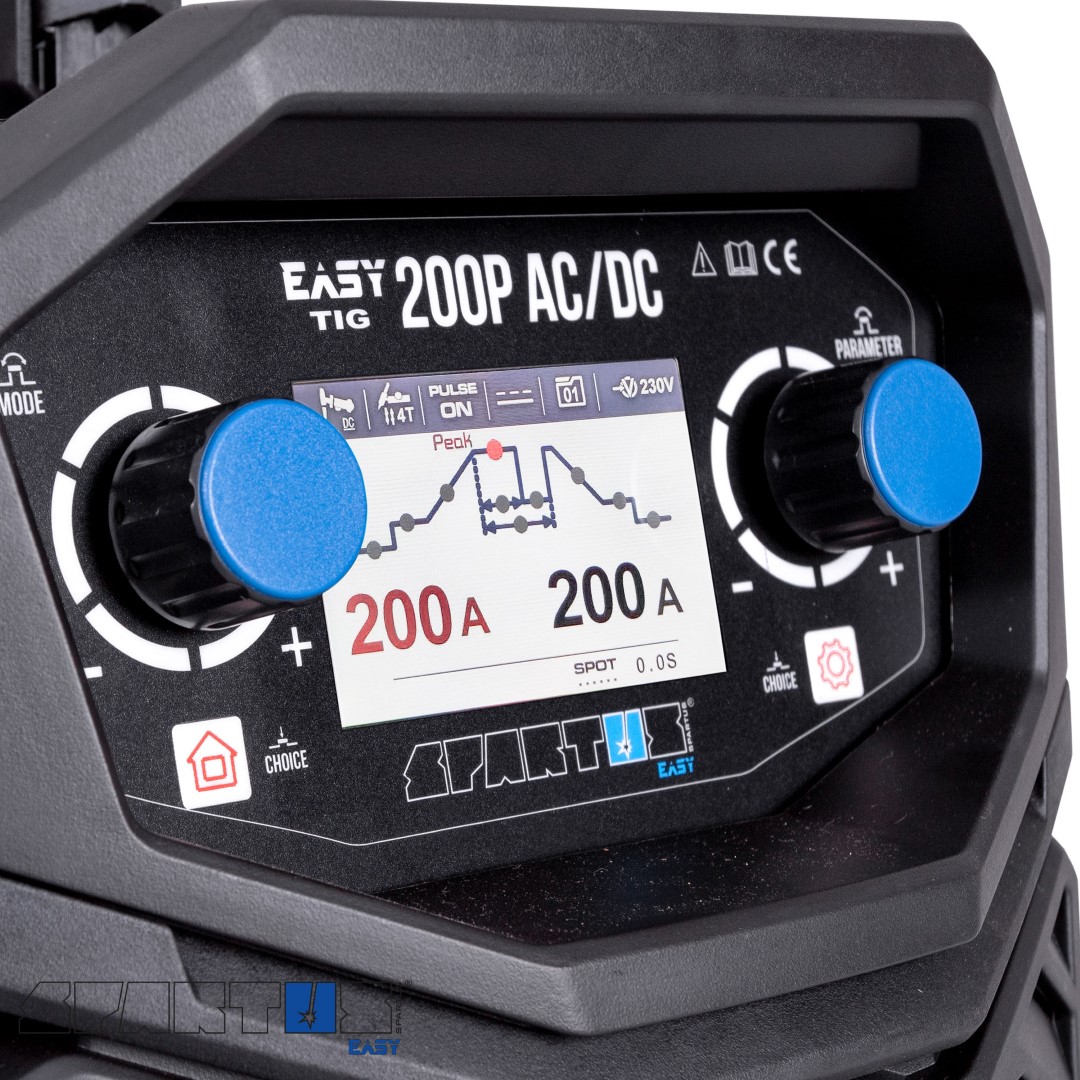

The easy-to-use function panel allows precise control of all the most important welding parameters. The modern display, using the TIG function waveform, facilitates the management of advanced parameters:

- pre-gas and post–gas,
- start amps, peak current and end amps,
- up slope and down slope,
- AC frequency (with mileage control),
- AC balans (20 – 80%),
- SPOT welding

and during welding with pulsed current:

- pulse width ( 5-100%),
- base current (10-200A),
- pulse frequency (0.5 – 200Hz).

Depending on the welder’s preferences EasyTIG 200P AC/DC can work in 2T or 4T mode. MMA welding mode (to 200A) is assisted by functions: Arc Force and Hot Start. The machine has 6 channels on which you can set and save your own welding parameters in the device memory.

SPARTUS® EasyTIG 200P AC/DC is designed and manufactured in order to fieldwork. Despite its small dimensions and weight, it allows for advanced welding TIG method. Examples of use: portable repair, workshop, maintenance, light constructions.

EasyTIG 200P AC/DC packages mini 17 4m / mini 17 8m

Device SPARTUS®EasyTIG 200P AC/DC
TIG torch SPARTUS® TIG mini SPE 17 1B X 4m
TIG toolbox (consumable kit)
3m electrode holder
3m mass hose
Gas hose
User's manual
Torch mini SPE 17 current-carrying capacity 150A DC

Package price [EUR]:


cena

Package price [EUR]:


cena
