SPARTUS®
EasyARC 205
TINY, PORTABLE MMA INVERTER.
Technical parameters
Input | ~1× 230V ± 10% 50 / 60 Hz |
Welding Current [A] | 10 200 |
Duty cycle [%] | 60 |
No-load voltage [V] | 82 |
TIG Lift DC welding mode | ![]() |
VRD welding mode | ![]() |
OTHER | |
Current consumpiton [A] | 42 |
Power factor (cosφ) | 0,76 |
Efficiency η [%] | 85 |
Insulation class | H |
Protection class | IP21S |
Weight [kg] | 4 |
Dimensions [mm] | 270 x 130 x 200 |
Description:
SPARTUS® EasyARC 205 is a compact inverter welding machine based on IGBT transistors. Allows to MMA and TIGLift DC welding. It is powered from single phase 230V source power.
The welding current is in the range between 10 to 200 amps. It has power enough required for welding electrodes diameter up to 4,0 mm. Integral digital display allows to precise control of welding parameters.
Welder with accessories, can easily fit in a handy suitcase which is included.
Examples of applications: light industry, farm, repair works in the field, workshop.

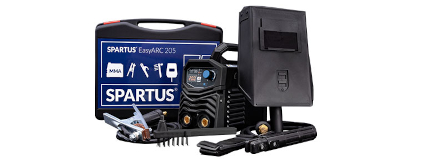

Package EasyARC 205:
Device SPARTUS® EasyARC 205
Electrode holder
Work clamp
Box
Shield
Hammer with a brush
Shoulder strap
User's manual
Package price [EUR]:
