SPARTUS®
ProCUT 45PFC
A MODERN AND LIGHT PLASMA CUTTER
Technical parameters
| Input | ~1 × 230V ± 10% 50 / 60 Hz |
| Cutting current[A] | 20 – 40 |
| Max. cutting thickness [mm] | 25 |
| Duty cycle [%] | 60 |
| PLASMA PARAMETERS | |
| Output working voltage [V] | 18 |
| Recommended work pressure [bar] | 5 |
| Recommended compressor efficiency [l/min] | 150 |
| Post-gaz |  |
| Contactless pilot arc ignition (no HF) | |
| 2T / 4T | |
| OTHER | |
| Current consumpiton [A] | 32.5 |
| Power factor (cosφ) | 0,7 |
| Insulation class | H |
| Protection class | IP21S |
| Weight [kg] | 14 |
| Dimensions [mm] | 600 × 215 × 405 |
Description:
SPARTUS® ProCUT 45PFC is an inverter plasma cutter with integrated CNC control socket.
Designed for cutting metals and other electrically conductive materials. It is powered with one-phase 230V source power.
Through the use of modern technology, we have obtained excellent source with maximum cutting current 40A. The maximum thickness of cut material is 25mm.
Built-in system of contactless pilot arc ignition without HF – provides excellent quality of cutting edge and longer life of consumables.
The easy-to-use panel with an LCD display allows for smooth adjustment of the cutting current and setting the appropriate pressure. In addition, the cutter is equipped with a 2T / 4T mode selector switch.
SPARTUS® ProCUT 45PFC is professional plasma cutter that will find application in manufacturing sectors, industry and as source of CNC plasma tables.

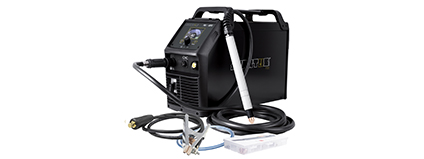

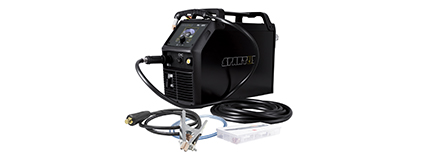

SPARTUS® ProCUT 45PFC package: SP45H
Device SPARTUS® ProCUT 45PFC
Plasma torch SPARTUS® 45H 6m
With toolbox (free consumables kit)
Bulit-in air filter with the pressure control
3m work clamp
Gas hose
User's manual
Package price [EUR]:
* used with retaining cap – 6 holes (60389)
