SPARTUS®
ProTIG 400P
AC/DC
MODERN, STRONG AND FOOLPROOF TIG AC/DC

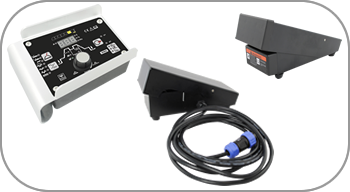

The device has ability to work with remote control devices such as:
wireless pilot, wireless foot pedal, standard foot pedal.
WIRELESS REMOTE PILOT [EUR]:
STANDARD FOOT PEDAL [EUR]:
WIRELESS FOOT PEDAL [EUR]:
Technical parameters
| Input | ~3× 400V ± 10% 50 / 60 Hz |
| Welding Current TIG [A] | 10 – 400 |
| Duty cycle [%] | 60 |
| TIG PARAMETERS | |
| Start Amps, End Amps |  |
| Gas pre flow [s] | 0,1 – 2 |
| Up slope [s] | 0 – 10 |
| Down slope [s] | 0 – 10 |
| Gas post flow [s] | 0 – 10 |
| TIG PULSE mode | |
| Pulse Amps [A] | 10 – 400 |
| Pulse Width [%] | 5 – 95 |
| Pulse frequency [Hz] | 0,5 – 999 |
| AC frequency [Hz] | 50 – 250 |
| AC Wave Forms | Square, Sinusoidal, Triangular |
| AC balance [%] | 10 – 99 |
| 2T/4T Control | |
| Arc ignition | LIFT / HF |
| Output remote control | |
| MMA PARAMETERS | |
| MMA welding mode [AC/DC] | |
| Welding current MMA [A] | 10 – 400 |
| Hot Start range [%] | 0 – 100 |
| Arc Force range [%] | 0 – 100 |
| No-load voltage [V] | 64 |
| OTHER | |
| Current consumpiton [A] | TIG 26.5 / MMA 36.5 |
| Power factor(cosφ) | 0,75 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 26 |
| Dimensions [mm] | 620 × 240 × 450 |
Description:
SPARTUS® ProTIG 400P AC/DC is a modern, digitally controlled inverter welder, constructed on the
basis of IGBTs. Allows welding with TIG AC/DC and MMA AC/DC welding methods up to 400 amps. The device has a
high duty cycle (60%) and is powered with three-phase 400V source power.
The digital function panel provides to precise control of all major welding parameters for both TIG AC and TIG
DC methods:
• TIG process full chart
• AC Balance in the wide range of 10-99%
• AC current frequency in the range 50-250 Hz
• AC wave forms: rectangular, sinusoidal, triangular
• Fully adjustable TIG PULS mode: peak current, base current, pulse frequency, pulse with
• 2T/4T operating mode
And the most important parameters for MMA AC/DC methods:
• Welding current
• Hot Start - easier arc ignition
• Arc Force - better welding in forced positions
SPARTUS® ProTIG 400P AC/DC will be perfect for welding jobs in industry and manufacturing. Both
during welding steels, stainless steel and aluminum or other alloys
Examples of use: production, industry, constructions.
Device SPARTUS® ProTIG 400P AC/DC:
Device Spartus® ProTIG 400P AC/DC
3m work clamp
Gas hose
User's manual
Device price [EUR]:

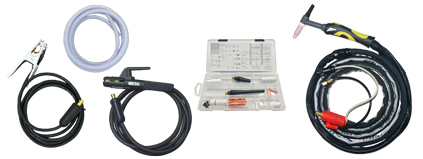

ProTIG 400P AC/DC packages 26 4m / 26 8m
| Device SPARTUS®ProTIG 400P AC/DC | Device SPARTUS®ProTIG 400P AC/DC |
| TIG torch SPARTUS® TIG SPP 26 4B X 4m | TIG torch SPARTUS® TIG SPP 26 4B X 8m |
| TIG toolbox (consumable kit) | TIG toolbox (consumable kit) |
| 3m electrode holder | 3m electrode holder |
| 3m work clamp | 5m work clamp |
| Gas hose | Gas hose |
| User's manual | User's manual |
|
Package price [EUR]: |
Package price [EUR]: |
