SPARTUS®
TIG 200P



MODERN, DEPENDABLE, DESIGNED FOR WELDING STAINLESS STEELS.

1 / 4

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding Current TIG [A] 5 – 200
Duty cycle [%] 60
TIG PARAMETERS
Start Amps, End Ampstak
Gas pre flow [s] 0 – 2
Up slope [s] 0 – 10
Down slope [s] 0 – 10
Gas post flow [s] 0 – 10
TIG PULSE mode tak
Pulse Amps [A] 5 – 200
Base Amps [A] 5 – 200
Pulse Width [%] 5 – 90
Pulse frequency [Hz] 1 – 200
2T/4T Controltak
Arc ignition HF
MMA PARAMETERS
MMA welding mode tak
Welding current MMA [A] 10 – 180
No-load voltage [V] 56
OTHER
Current consumpiton [A] 20
Power factor (cosφ) 0,93
Efficiency η [%] 85
Insulation classF
Protection classIP21
Weight [kg]10,3
Dimensions [mm]440 × 165 × 310
Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS Master TIG 200P. Small, modern inverter welding machine. Allows gas tungsten arc welding (TIG, GTAW) and manual metal arc welding (SMAW, MMA). Maximum welding current is 200A with high duty cycle 60%. Device is powered from single phase 230V source power.

SPARTUS Master TIG 200P is equipped with intuitive digital control panel with saving parameters function (10 channels available in memory). The device is capable to precise control of all key parameters in TIG welding, which are presented at simple and easy way on chart the course of the welding process.

TIG pulse welding mode is essential for welding stainless steel components in particular when combining the thin elements. Welder has complete control over the volume of heat input into the material with the ability to adjust the parameters of pulsed current (peak amps, base amps, pulse frequency, pulse width).

Examples of use: light industrial, portable repair, workshop, maintenance, constructions.

Device SPARTUS® MasterTIG 200P:

Device Spartus® MasterTIG 200P

3m work clamp

Gas hose

User's manual

Device price [EUR]:

cena

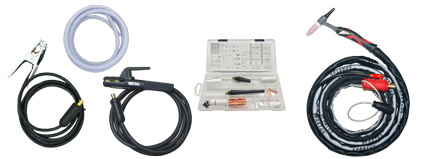

MasterTIG 200P packages mini 17 4m / mini 17 8m

Device SPARTUS® MasterTIG 200P Device SPARTUS® MasterTIG 200P
TIG torch SPARTUS® mini SPM17 1B X 4m TIG torch SPARTUS® mini SPM17 1B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch mini SPM17 current-carrying capacity 150A DC

Package price [EUR]:


cena

Package price [EUR]:


cena

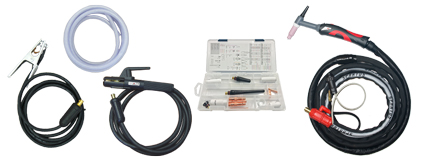

MasterTIG 200P packages 26 4m / 26 8m

Device SPARTUS®MasterTIG 200P Device SPARTUS®MasterTIG 200P
TIG torch SPARTUS® SPM26 1B X 4m TIG torch SPARTUS® SPM26 1B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch SPM26 current-carrying capacity 200A DC

Package price [EUR]:



cena

Package price [EUR]:



cena
