MIG 350H


1 / 6

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 350
Duty cycle [%] 85
Output working voltage [V] 20,8 – 34
Wire feeding speed [m/min] 2,5 – 21
Wire feeder separated, 4-roll gear
Welding wire spool [kg]/[mm] ≤ 15 / ∅200/300
Wire diameter ∅ [mm] 0.8 / 1.0 / 1.2 / 1.6
2T/4T Control yes
MMA welding mode yes
Welding current MMA [A] 20 – 350
Inductance control yes
Wire test yes
Current consumption [A] 21,7
Power factor (cosφ) 0,85
Sprawność η [%] 85
Insulation class F
Protection classIP23
Weight [kg]98
Dimensions [mm]1060 × 420 × 1400
Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge


SPARTUS Pro MIG350H. Professional, industrial MIG welder (TOWER type) with separate wire feeder. Made in inverter technology using the highest quality components. It enables welding MIG/MAG and MMA. Max welding current is 350A for both methods. Device is powered from three phase 400V source power.

Control panel allows smooth adjustment of parameters: welding voltage, wire feed speed, inductance control (MIG/MAG mode); welding current (MMA mode). Source has built-in digital displays of welding parameters.

High end 4-roll wire feeder allows stable wire feed when working with long MIG gun (regardless of wire type). Using separate wire feeder further enhances range of device. Total range is equal to total lengths of welding gun cable and wire feeder connection kit (available in offer various lengths of wire feeder connection kit). Wire feeder is equipped with handy grip and wheels.

Robust design allows installation of a large cylinder with shielding gas. So composed set can be moved easily due to durable wheels (front steering axle). Additional box at bottom of device allows for convenient storage guns and other accesories when welder is working.

Incredible high duty cycle (X85%) guarantees stable output performance, even during long welding with high currents exceeding value of 300A.

SPARTUS Pro MIG series H and HW. This solution dedicated to specialized industrial applications. Machines are ready to work in toughest conditions.

Examples of use: industrial, constructions, manufacturing.

Standard equipment:

3 meter work clamp

User’s manual

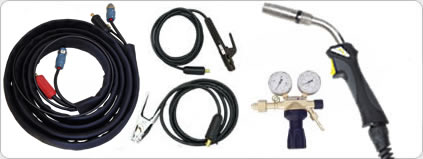

Package equipment:

3 meter electrode holder

3 meter work clamp

Connection cable set 5m

Gas regulator SPARTUS Ar/CO2

MIG gun SPARTUS Pro 360 5m

User’s manual
