SPARTUS®
EasyMIG 320LCD
SYNERGICZNY I MOCNY MIG IGBT Z WYŚWIETLACZEM LCD
Technical parameters
| Input | 3× 400V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 50 – 300 |
| Duty cycle [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 16,5 – 29 |
| Wire feeding speed [m/min] | 2 – 18 |
| Wire feeder | built-in, 4-roll gear |
| Welding wire spool[kg]/[mm] | ≤ 15 / ∅200 / ∅300 |
| Wire diameter ∅ [mm] | Steel 0.8 / 1.0 / 1.2 Aluminum 1.0 / 1.2 |
| 2T/4T Control |  |
| TIG PARAMETERS | |
| TIG Lift | |
| Welding current TIG [A] | 10 – 300 |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 250 |
| Hot Start | |
| Arc Force | |
| OTHER | |
| Wire test | |
| Change polarity | |
| Current consumption [A] | 17 |
| Weight [kg] | 38 |
| Dimensions [mm] | 920 × 470 × 740 |
Description:
SPARTUS® EasyMIG 320LCD is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 320LCD is powered by 400V three-phase.
The maximum welding current for SPARTUS® EasyMIG 320LCD is 300A for MIG/MAG and 250A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.
SPARTUS® EasyMIG 320LCD is equipped in the synergy system for MIG/MAG welding with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the device's panel.
The device is equipped with the following programs: CO2 steel, mixed steel, aluminium, core wire welding, as well as manual welding mode.
SPARTUS® EasyMIG 320LCD has a set of features supporting the welding process: 2T/4T work mode, inductance regulation, Arc Force, Hot Start and VRD.
The modern LCD allows an easy and quick setting of the welding voltage and to manage the device functions. When the parameters are corrected, the display sets the weld shape dependence regarding the voltage and shows graphically the recommended thickness of the material for the given current.
Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas cylinder on the chassis of the device.
SPARTUS® EasyMIG 320LCD is a compact device designed mostly for efficient welding of steel constructions and working in difficult workshop conditions.

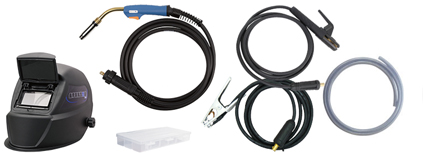

SPARTUS® EasyMIG 320LCD package:
Device SPARTUS® EasyMIG 320LCD
MIG gun SPARTUS® SPE 360 3m
MIG toolbox (consumable kit)
Passive helmet SPARTUS® Easy with flap
Electrode holder
Work clamp
Gas hose
User's manual
Package price [EUR]:
