SPARTUS®
MIG 315Y



COMPACT IGBT. DEVICE DESIGNED FOR INDUSTRY.

1 / 1

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 315
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 16,5 – 29
Wire feeding speed [m/min] 2,5 – 16
Wire feeder built-in, 4-roll gear
Welding wire spool [kg]/[mm] ≤ 15 / ∅200/300
Wire diameter ∅ [mm] 0.8 / 1.0 / 1.2
2T/4T Control yes
MMA PARAMETERS
MMA welding mode yes
Welding current MMA [A] 20 – 280
OTHER
Inductance controlyes
Wire testyes
Current consumption [A] 18,3
Power factor (cosφ) 0,85
Efficiency η [%] 85
Insulation class F
Protection class IP21
Weight [kg]56
Dimensions [mm]1040 × 460 × 730
Click on photo to enlarge

Description:

SPARTUS Master MIG315Y. This high-end semi-automatic welding machine (compact type). Is made in inverter technology with using IGBTs. Allows to gas metal arc welding (MIG/MAG - max welding current 315A). It also has additional stick welding function (MMA - max welding current 280A). It is powered from three phase 400V source power.

Built-in 4-roll wire feeder, provides stable wire feed when working with long MIG gun (regardless of wire type). Intuitive control panel allows to smooth and precise control of parameters: welding voltage, wire feed speed, inductance control (MIG/MAG mode); welding current (MMA mode). Device is additionally equipped with digital displays that provide full parameters control at every stage.

SPARTUS Master MIG series Y. Compacts designed for operation in harsh industrial environments. Excellent output parameters, high duty cycle, efficient cooling system, durable housing, 2T/4T modes. This devices have countless advantages.

Examples of use: industrial, workshop, automotive, exhaust silencer welding, constructions, manufacturing.

Device SPARTUS® MasterMIG 315Y:

Device SPARTUS® MasterMIG 315Y:

3m work clamp

Gas hose

User's manual

WIRED FOOT CONTROLER [EUR]:

cena

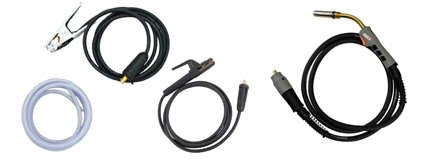

SPARTUS® MasterMIG 315Y package:

Device SPARTUS® MasterMIG 315Y:

MIG gun SPARTUS® SPM 360

3m electrode holder

3m work clamp

Gas hose

User's manual

WIRED FOOT CONTROLER [EUR]:

cena

NOVELTY! Choose the length of the MIG gun yourself!
The price of the package includes the option of choosing a 3-, 4- or 5-meter MIG gun.

Lack of information results in random length selection.
