English version




1 / 3



Professional welding of TIG torch
with microswitch - Lift method.
zdalne sterowanie
Possibility to use SPARTUS® Spool Gun
with built-in wire feeder. More...
spool gun

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current MIG [A] 40 – 250
Duty cycle MIG [%] 35
MIG PARAMETERS
Output working voltage MIG [V] 14.8 – 26.5
Wire feeding speed [m/min] 1,5 – 18
Wire feeder built-in, 4-roll gear
Welding wire spool [kg]/[mm] ≤ 15 / ∅200/300
Wire diameter ∅ [mm] 0.6 / 0.8 / 1.0 / 1.2
Synergic tak
Synergic programs Fe, Al, Ss
Built-in memory tak
Inductance control Wave Control
Brazing tak
Slow feed tak
Burnback tak
2T/4T Control tak
TIG PARAMETERS
TIG DC welding tak
Welding current TIG [A] 10 – 250
Duty cycle TIG [%] 35
Down slope [s] 0 – 10
Pre-gaz tak
Post-gaz tak
Arc ignition LIFT
MMA PARAMETERS
MMA welding mode yes
Welding current MMA [A] 10 – 250
Duty cycle MMA [%] 30
Arc Force yes
No-load voltage [V] 68
OTHER
PFC yes
Current consumption [A] MIG 37 / MMA 41 / TIG 28,5
Power factor (cosφ) 0,99
Efficiency η [%] 80
Insulation class H
Protection class IP23
Weight [kg]25
Dimensions [mm]650 × 240 × 450
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS Pro MIG 250PFC SYNERGY is a modern multi-purpose 3in1 welding machine. Allows to welding: MIG/MAG, TIG and MMA. With its production were used the latest technologies such as IGBTs and MCU control system. MIG 250PFC through using a PFC filter generates more output power when powered with a single-phase 230V source power, which allows to weld with current up to 250 amperes for all three methods.

Easy to use and intuitive control panel allows for precise control of parameters for MIG/MAG, TIG and MMA welding. Moreover the device is equipped with a synergic MIG/MAG welding function. After defining parameters such as: the type of shielding gas, type and diameter of welding wire and expected welding current - welding voltage and wire feed speed are selected automatically by the device. Additionally the user has the option to manual adjustment of the programmed parameters in the device or to pass mode manually setting parameters of MIG/MAG welding such as welding voltage and wire feed speed.

SPARTUS Pro MIG 250PFC is equipped with a professional 4-roll wire feeder which allows you to work with long MIG guns, regardless of wire type. Despite of small compact size and weight of the device it is compatible with standard welding wire spool such as: size D200 or D300 weighing up to 15 kilos.

Using in the production of inverter technology guarantees excellent output parameters, stable welding arc and excellent weld quality.

Examples of use: workshop, portable repair, automotive - welding of galvanized car bodies (brazing) , exhaust silencer welding, constructions, manufacturing.

Standard equipment:

3 meter work clamp

Gas hose with clamps

User's manual

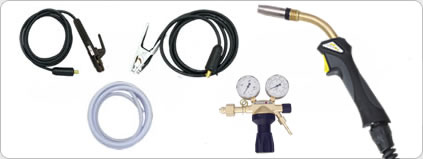

Package equipment:

3 meter electrode holder

3 meter work clamp

Gas hose with clamps

Gas regulator SPARTUS Ar/CO2

MIG gun SPARTUS Pro 240 5m

User's manual
