SPARTUS®
MasterMIG
200PFC
INNOVATIVE, PORTABLE, MULTI-PROCESS,
SYNERGISTIC
MIG

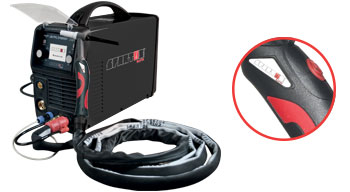

The possibility of a professional TIG LIFT
welding with microswitch torch.
The possibility of use SPARTUS® Spool Gun
with built-in wire feeder.
More...
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 25 – 200 |
| Duty cycle MIG [%] | 40 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 15,3 – 24 |
| Wire feeding speed [m/min] | 2,5 – 16,5 |
| Wire feeder | built-in, 2-roll gear |
| Welding wire spool [kg]/[mm] | ≤ 5 / ∅200 |
| Wire diameter ∅ [mm] | 0.6 / 0.8 / 1.0 |
| Synergic |  |
| Synergic programs | 16 dedicated |
| Inductance control | Wave Control |
| Brazing (CuSi) | |
| Slow feed | |
| Burnback | |
| 2T/4T Control | |
| TIG PARAMETERS | |
| TIG DC welding | |
| Welding current TIG [A] | 10 – 200 |
| Duty cycle TIG [%] | 40 |
| Down slope [s] | 0 – 10 |
| Post-gas | |
| Arc ignition | LIFT |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 200 |
| Duty cycle MMA [%] | 40 |
| ARC FORCE | |
| HOT START | |
| No-load voltage [V] | 14 |
| OTHER | |
| PFC | |
| Current consumption [A] | MIG 28 / MMA 32 / TIG 21 |
| Power factor (cosφ) | 0,99 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 17 |
| Dimensions [mm] | 530 × 215 × 410 |
Description:
SPARTUS MasterMIG 200PFC is a professional, portable, multi-process welding semi-automatic device. It enables
MIG/MAG, TIG and MMA welding with maximum welding current of 200A. The unit is powered from a single-phase
network 230V.
The device was produced with using of modern solutions such as inverter technology, IGBT power transistors, MCU
controller, PWM technology, PFC filter. All of our technology solutions provide stable output performance under
a variety of conditions, which has a direct effect on outstanding arc characteristics and welded joint quality.
The device has a number of functions that support MIG / MAG welding processes:
- Synergistic MIG/MAG welding mode: 16 dedicated programmes.
- Wave Control - precise arc dynamics adjustment Wave control ensures full control over the welding arc:
it allows to reduce the amount of welding splashes and controls the width and depth of fusion.
- Burn Back - precise adjustment of welding wire burning speed allows limit a risk of sticking the welding
wire to the contact tip.
- Slow Feed - so called gentle start-up of the wire feeder, recommended especially during welding with
high amperage and high speed s of wire feed. Smooth start of wire feed eliminates the risk of welding defects at
the beginning of the weld.
- 2T / 4T - Choice of one of two operating modes.
- Spool Gun - possibility of welding with type Spool Gun welding holder.
The MasterMIG 200 PFC also has a number of features that support TIG welding processes (2T/4T mode, current
falling speed adjustment, post-gas) and MMA (Hot Start for easier electrode ignition, Arc Force for easier
welding in forced positions, VRD lower no-load voltage).
Compact size, special design and high protection of the device housing provide increased resistance to humidity,
salinity and corrosion, making it ideal for shipbuilding - minor repairs and site overhaul. Thanks to its
excellent parameters, it can also be used for light manufacturing and service work in other industries.
Device SPARTUS® MasterMIG 200PFC:
Device SPARTUS® MasterMIG 200PFC
3m work clamp
Gas hose
User's manual
Package price [EUR]:

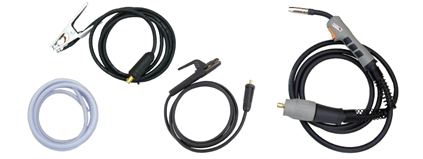

SPARTUS® MasterMIG 200PFC package:
Device SPARTUS® MasterMIG 200PFC
MIG gun SPARTUS® SPM 150
3m electrode holder
3m work clamp
Gas hose
User's manual
Package price [EUR]:
NOVELTY! Choose the length of the MIG gun yourself!
The price of
the package includes the option of choosing a 3-, 4- or 5-meter MIG gun.
Lack of information results in random length selection.
