English version


MIG 160

LIGHTWEIGHT, COMPACT 2 IN 1 MIG WELDER.

1 / 5

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 160
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 17 – 22
Wire feeding speed [m/min] 2,5 – 13
Wire feeder built-in, 2-roll gear
Welding wire spool[kg]/[mm] ≤ 5 / ∅200
Wire diameter ∅ [mm] 0.6 / 0.8
2T/4T Control
MMA PARAMETERS
MMA welding mode yes
Welding current MMA [A] 10 – 160
OTHER
FCAW (Flux Cored Arc Welding) yes
Wire test yes
Current consumption [A] 20,6
Power factor (cosφ) 0,85
Efficiency η [%] 85
Insulation class F
Protection class IP23
Weight [kg]17,9
Dimensions [mm]500 × 250 × 410
Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS Mater MIG 160. Compact, inverter MIG/MAG welder with additional stick welding function (MMA). It is powered from single phase 230V source power. Maximum welding current equal 160A with high of 60% duty cycle.

Intuitive and easy-to-use control panel allows rapid selection of the optimum welding parameters. It has ability to smooth adjustment: welding voltage, wire feed speed (MIG/MAG mode); welding current (MMA mode).

Quick connector of welding polarity and high end two-roll wire feeder - allow to easy flux-cored arc welding (FCAW).

Used in production of inverter technology guarantees excellent output parameters, stable welding arc and excellent weld quality.

Examples of use: workshop, portable repair, automotive, exhaust silencer welding.

Standard equipment:

3 meter work clamp

Gas hose with clamps

User’s manual

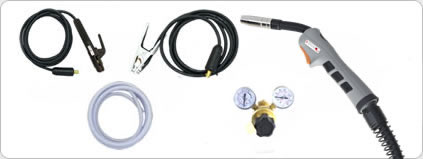

Package equipment:

3 meter electrode holder

3 meter work clamp

Gas hose with clamps

Gas regulator CO2

MIG gun SPARTUS Master 150 3m

User’s manual
