English version


SPARTUS®
MASTER DPP

MULTI-FUNCTION SYNERGIC MIG TOWER

1 / 1

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 60 – 500
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 17 – 39
Wire feeding speed [m/min] 0,3 – 22
Wire feeder separated, 4-roll gear
Welding wire spool [kg]/[mm] ≤ 15 / ∅200/300
Wire diameter ∅ [mm] 0.8 / 1.0 / 1.2 / 1.6
2T/4T Control yes
MMA PARAMETERS
MMA welding mode yes
Welding current MMA[A] 20 – 500
OTHER
Digital synergic control paneyes
MIG double-pulsed weldingyes
Braze weldingyes
Water cooleryes
Current consumption [A] MIG/MMA[A] 32,2 / 28,3
Power factor (cosφ) 0,85
Efficiency η [%] 85
Insulation class F
Protection classIP23
Weight [kg]115
Dimensions [mm]1080 × 440 × 1520
Click on photo to enlarge

Description:

SPARTUS MATER DPP. The high-tech, multi-purpose and specialized MIG welder (TOWER type). It has multiple features such as: synergic MIG/MAG welding, MIG double-pulse welding, braze welding. Additionally it allows to stick electrode welding (MMA) and conducting of electro-gouging process. It is powered from three phase 400V source power. Max welding current is 500A.

Digital control panel equipped with advanced synergic welding programs, allows for optimal selection of welding parameters even for the most demanding metal alloys. Device has built-in welding support programs for such materials as aluminum, steels and stainless steels.

MIG double-pulsed welding almost to zero eliminates problem of weld spatter. The result is high quality weld (quality similar to welded joint made during TIG welding).

Braze welding function is particularly useful in automotive sector. It allows you to connect elements of vehicle body (protected against corrosion) - without excessive damage to original galvanized coating.

Thanks to excellent work of 4-roll wire feeder it is possible to use long MIG guns (regardless of wire type). Using separate wire feeder further enhances range of device. Total range is equal to total lengths of welding gun cable and wire feeder connection kit (available in offer various lengths of wire feeder connection kit). Wire feeder is equipped with handy grip and wheels.

Using a modular liquid cooling system further enhances efficiency of whole kit and work comfort, by better removing heat from welding gun.

SPARTUS MASTER DPP works with impressive 100% duty cycle for max welding current. It is device designed for industrial applications and highly specialized welding.

Examples of use: heavy industrial, constructions, manufacturing, shipyard, offshore sector, automotive - car body repairs.

Standard equipment:

3 meter work clamp

User’s manual

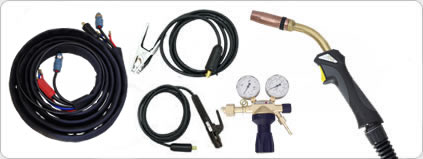

Package equipment:

3 meter electrode holder

3 meter work clamp

Connection cable set 5m

Gas regulator SPARTUS Ar/CO2

MIG gun SPARTUS Pro 501 5m

User’s manual
