SPARTUS®
EasyMIG 275
SYNERGIC IGBT COMPACT WITH LCD DISPLAY
Technical parameters
| Input | 3× 400V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 50 – 250 |
| Duty cycle [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 16,5 – 26,5 |
| Wire feeding speed [m/min] | 2 – 18 |
| Wire feeder | built-in, 4-roll gear |
| Welding wire spool[kg]/[mm] | ≤ 15 / ∅200 / ∅300 |
| Wire diameter ∅ [mm] | Steel 0.8 / 1.0 / 1.2 Aluminum 1.0 / 1.2 |
| 2T/4T Control |  |
| TIG PARAMETERS | |
| TIG Lift | |
| Welding current TIG [A] | 10 – 250 |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 220 |
| Hot Start | |
| Arc Force | |
| OTHER | |
| Wire test | |
| Change polarity | |
| Current consumption [A] | 12 |
| Weight [kg] | 39 |
| Dimensions [mm] | 920 × 470 × 740 |
Description:
SPARTUS® EasyMIG 275 is modern, inverter and professional MIG/MAG welding machine with inert
or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 275 is powered by 400V
three-phase.
The maximum welding current for SPARTUS® EasyMIG 275 is 250A for MIG/MAG and 230A for MMA. 60% high working
cycle ensures stable output parameters during long-term welding work.
SPARTUS® EasyMIG 275 is equipped in the synergy system for MIG/MAG
welding with the ability to manually change parameters. You can choose the following programs: CO2
steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the
device's panel.
The device is equipped with the following programs: CO2 steel, mixed steel, aluminium, core wire welding, as
well as manual welding mode.
SPARTUS® EasyMIG 275 has a set of features supporting the welding process: 2T/4T work mode,
inductance regulation, Arc Force, Hot Start and VRD.
The modern LCD allows an easy and quick setting of the welding voltage and to manage the device functions. When
the parameters are corrected, the display sets the weld shape dependence regarding the voltage and shows
graphically the recommended thickness of the material for the given current.
Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design
makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas
cylinder on the chassis of the device.
SPARTUS® EasyMIG 275 is a compact device designed mostly for efficient welding of steel constructions
and working in difficult workshop conditions.

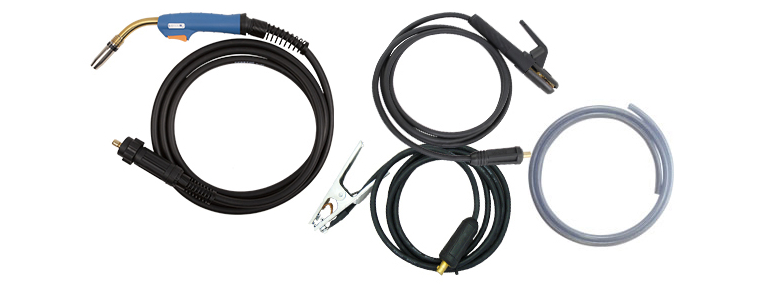

SPARTUS® EasyMIG 275 package:
Device SPARTUS® EasyMIG 275
MIG gun SPARTUS® SPE 240 3m
Additionally 2 x wire guide roller 1.0-1.2V fi30
Electrode holder
Work clamp
Gas hose
User's manual
Package
price [EUR]:
