English version


SPARTUS®
EasyMIG 270LCD



SYNERGIC IGBT COMPACT WITH LCD DISPLAY

1 / 6

Technical parameters

Input 3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 250
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 16,5 – 26,5
Wire feeding speed [m/min] 2 – 18
Wire feeder built-in, 4-roll gear
Welding wire spool[kg]/[mm] ≤ 15 / ∅200 / ∅300
Wire diameter ∅ [mm] Steel 0.8 / 1.0 / 1.2
Aluminum 1.0 / 1.2
2T/4T Control tak
TIG PARAMETERS
TIG Lift tak
Welding current TIG [A] 10 – 250
MMA PARAMETERS
MMA welding mode tak
Welding current MMA [A] 10 – 220
Hot Start tak
Arc Force tak
OTHER
Wire test tak
Change polarity tak
Current consumption [A] 12
Weight [kg]39
Dimensions [mm]920 × 470 × 740
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS® EasyMIG 270LCD is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 270LCD is powered by 400V three-phase. The maximum welding current for SPARTUS® EasyMIG 270LCD is 250A for MIG/MAG and 230A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.

SPARTUS® EasyMIG 270LCD is equipped in the synergy system for MIG/MAG welding with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the device's panel.

The device is equipped with the following programs: CO2 steel, mixed steel, aluminium, core wire welding, as well as manual welding mode.

SPARTUS® EasyMIG 270LCD has a set of features supporting the welding process: 2T/4T work mode, inductance regulation, Arc Force, Hot Start and VRD.

The modern LCD allows an easy and quick setting of the welding voltage and to manage the device functions. When the parameters are corrected, the display sets the weld shape dependence regarding the voltage and shows graphically the recommended thickness of the material for the given current.

Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas cylinder on the chassis of the device.

SPARTUS® EasyMIG 270LCD is a compact device designed mostly for efficient welding of steel constructions and working in difficult workshop conditions.

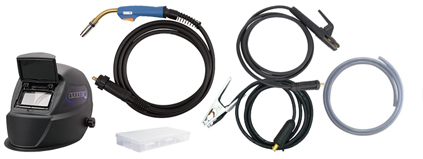

SPARTUS® EasyMIG 270LCD package:

Device SPARTUS® EasyMIG 270LCD

MIG gun SPARTUS® SPE 240 3m

MIG toolbox (consumable kit)

Passive helmet SPARTUS® Easy with flap

Electrode holder

Work clamp

Gas hose

User's manual
