English version

EasyMIG 220E Pulse

A modern, synergistic MIG with pulse current welding function

1 / 4

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current MIG [A] 20 – 200
Duty cycle MIG [%] 60
Output working voltage MIG [V]15 - 24
Wire feeder builid-in, 2 - roll gear
Wire feeding speed [m/min]2 - 16
Welding wire spool [mm] ≤ 5[kg], Ø200
Wire diameter Ø [mm] 0.6 / 0.8 / 1.0
2T/4T switch tak
Inductance control tak
Synergistic program tak
Spot welding tak
Synergy tak
Welding current TIG [A] 20 – 200
Arc ignition Lift
Gas test tak
Welding current MMA [A] 20 – 200
Welding with a coated electrodetak
Max. current consumpiton [A] 32.5
Power factor (cosφ) 0,85
Efficiency η [%] 85
Insulation classH
Protection classIP23
Weight [kg]19
Dimensions [mm]540 × 470 × 245
Network security (fuse) [A]25c
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge


SPARTUS® EasyMIG 220E PULSE is a modern, inverter welding semi-automatic device. It enables welding with three welding methods: a consumable electrode shielded by inert or active gases (MIG/MAG), a coated electrode (MMA) and non-consumable electrode shielded by inert gas TIG Lift (start arc ignition by scratching). In addition, the device thanks to the ability to change the polarity of welding, enables welding with self-shielding wire without gas. The maximum welding current for all methods is 200A. The unit is powered from single-phase network 230V.

SPARTUS® EasyMIG 220E PULSE is equipped with synergistic programs for MIG / MAG dedicated for welding steel alloys, stainless and acid-resistant steels as well as aluminum. It has a program to welding with self-shielding wire. All parameters are adjusted using an easy to use and intuitive control panel function. Constant output parameters are guaranteed by the use of modern technologies and a high quality wire feeder. The device uses technologically advanced MIG / MAG functions:

• welding with pulsation - makes it easy to transfer material to weld pool
• welding inductance adjustment
• possibility to choose one of two operating modes 2T/4T
• SPOT welding

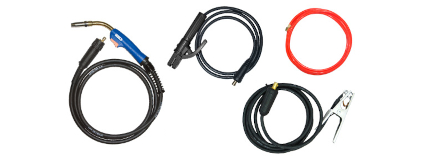

SPARTUS® EasyMIG 220E Pulse package:

Device SPARTUS® EasyMIG 220E Pulse

MIG gun SPARTUS® SPE 240 3m
(*equipped with a graphite insert)

Electrode holder

Work Clamp

Gas hose

User's manual

Package price [EUR]:
