SPARTUS®
EasyMIG 205
MODERN INVERTER MIG / MAG AND MMA WELDING
MACHINE.
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 50 – 200 |
| Duty cycle [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 16,5 – 24 |
| Wire feeding speed [m/min] | 2 – 16 |
| Wire feeder | built-in, 4-roll gear |
| Welding wire spool[kg]/[mm] | ≤ 15 / ∅200 / ∅300 |
| Wire diameter ∅ [mm] | 0.8 / 1.0 / 1.2 |
| 2T/4T Control |  |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 180 |
| OTHER | |
| Wire test | |
| Change polarity | |
| Burn Back | |
| Current consumption [A] | 27(MIG) 26.4(MMA) |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP21 |
| Weight [kg] | 48 |
| Dimensions [mm] | 935 × 420 × 720 |
Description:

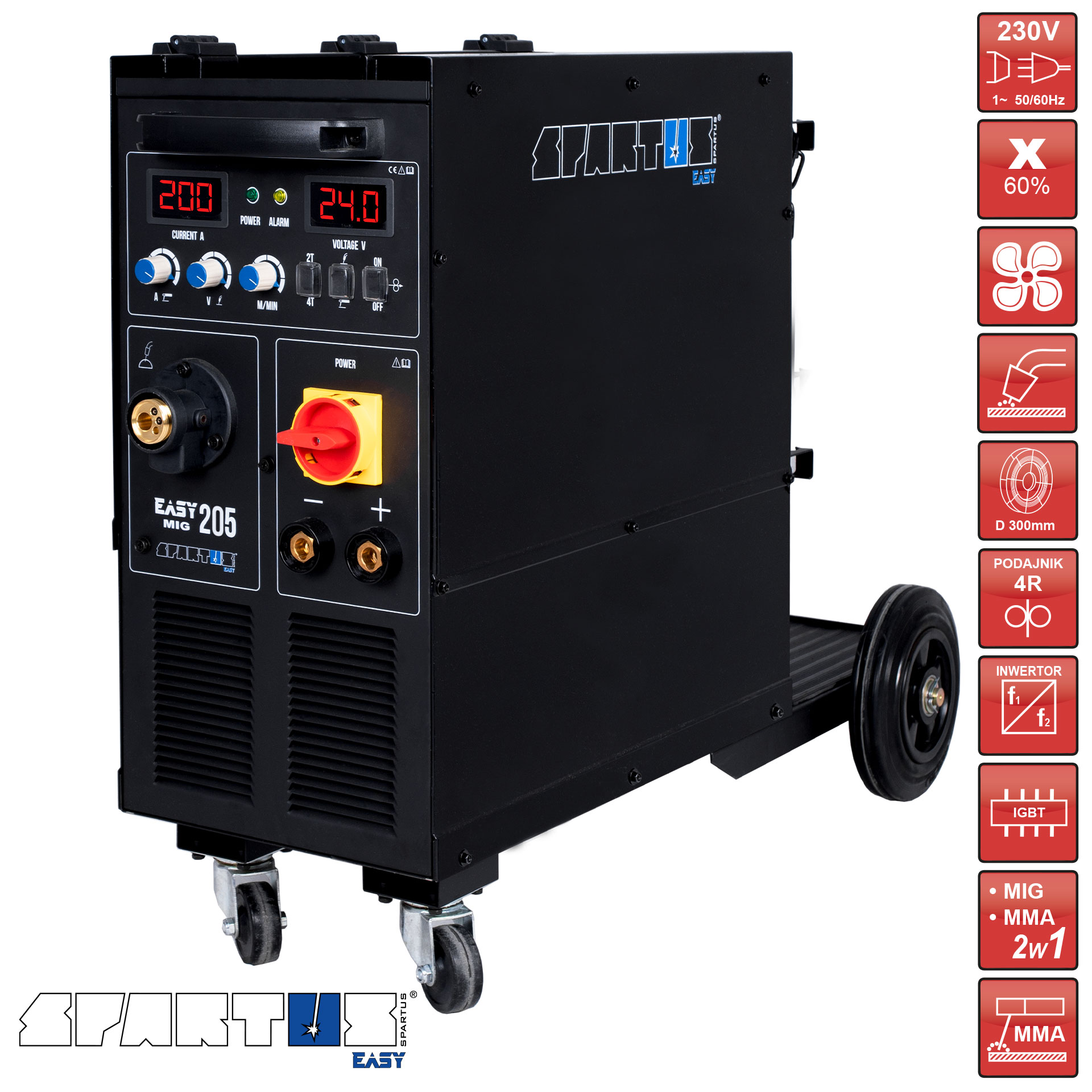

SPARTUS EasyMIG 205 is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS EasyMIG 205 is powered by 230V single-phase.
The maximum welding current for EasyMIG 205 is 200A for MIG/MAG and 180A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.
Equipped with easy-to-use function panel with the ability to precisely adjust the following MIG/MAG parameters: welding voltage, wire feed speed, 2T/4T operating mode. Additionally, they are equipped with the Burn Back function - adjustment of the free wire release after welding and the ability to change the welding polarity. For the MMA method it is possible to smoothly adjust the welding current. Digital displays allow for precise control of parameters.
The built-in four-roll welding wire feeder ensures stable wire feed when working with a long handle (regardless of the type of welding wire). The durable, compact design makes them ideal for use in harsh environments. It is possible to install technical gas cylinder on the chassis of the machine.
SPARTUS EasyMIG 205 is compact, designed primarily for the efficient welding of various types of steel structures and work in difficult workshop conditions.
SPARTUS® EasyMIG 205 device:
Device SPARTUS® EasyMIG 205
MIG gun SPARTUS® SPE 150 3m
Electrode holder
Work clamp
Gas hose
User's manual
Package price [EUR]:
