SPARTUS®
EasyMIG 200E



LIGHTWEIGHT AND MOBILE 2 IN 1 MIG WELDER

1 / 4

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 200
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 16,4 – 24
Wire feeding speed [m/min] 2 – 14
Wire feeder built-in, 2-roll gear
Welding wire spool[kg]/[mm] ≤ 5 / ∅200
Wire diameter ∅ [mm] 0.6 / 0.8 / 1.0 / 1.2
2T/4T Control
MMA PARAMETERS
MMA welding mode tak
Welding current MMA [A] 10 – 200
OTHER
Wire test tak
Current consumption [A] 27,6
Power factor (cosφ) 0,93
Efficiency η [%] 85
Insulation classF
Protection classIP21
Weight [kg]18
Dimensions [mm]450 × 220 × 343
Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

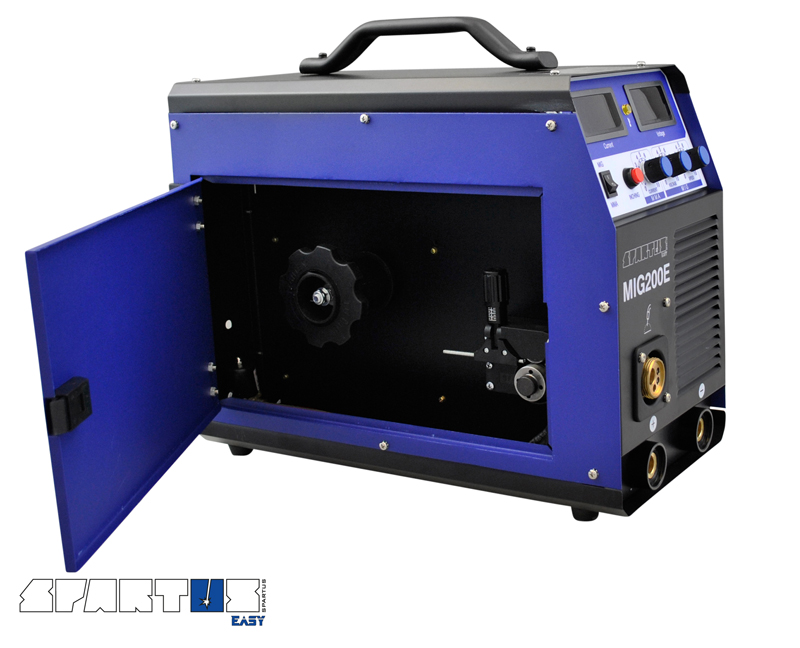

SPARTUS EasyMIG 200E is a modern, inverter semi-automatic welding machine which is constructed on the basis of IGBTs. It allows to gas metal arc welding (MIG/MAG) and stick welding (MMA). Maximum welding current for both methods is 200A (high 60% duty cycle). It is powered from single phase 230V source power.

SPARTUS EasyMIG 200E has a simple and intuitive function panel and built-in digital displays for precise control of parameters. Control knobs allow to smooth adjustment: welding voltage, wire feed speed (MIG/MAG mode); welding current (MMA mode), make it always possible to select optimal welding parameters. Used in production of inverter technology guarantees excellent output parameters, stable welding arc and excellent weld quality.

Examples of use: workshop, portable repair, automotive, exhaust silencer welding.

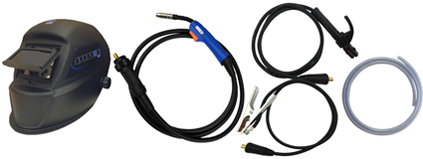

Package equipment:

EasyMIG 200E device

MIG gun SPARTUS SPE 15 3m

MIG toolbox (consumable kit)

Helmet SPARTUS Easy with clap

Electrode holder

Work clamp

Gas hose with bands

User’s manual (polish and english version).

Package price [EUR]:
