Technical parameters

Input~1 × 230V ± 10% 50 / 60 Hz
Cutting current [A]10 – 50
Max. cutting thickness [mm]15
Duty cycle [%]60
PLASMA PARAMETERS
Output working voltage [V]100
Recomended work pressure [bar]4
Air consumption [l/min]150
Post gas flow tak
HF pilot arc start tak
OTHER
Current consumpiton [A] 27,5
Power factor (cosφ) 0,93
Efficiency η [%] 85
Insulation class F
Protection class IP23
Weight [kg] 11
Dimensions [mm] 430 × 165 × 305
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS Master CUT50C is a compact inverter plasma cutter. Designed for cutting metals and any electrically conductive materials. It is powered from single-phase 230V source power.

Through the use of modern technology, we were able to get extremely lightweight and compact source with 50A of cutting power. A maximum thickness of cutting material is 15mm.

CUT50C cutter has a simple to use function panel with built-in digital display parameters. It is equipped with professional HF arc ignition system, overload control system and smooth control of cutting power. The built-in parameters stabilization system, provides excellent cutting quality.

Examples of use: hobby, workshop, portable repair, production.

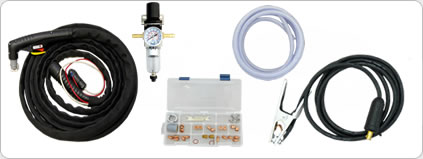

Package equipment:

3 meter work clamp

Air hose

Air filter with the pressure control

Handy plasma torch SPARTUS SP70H (consumable parts
type: CEBORA® P70 / EWS® EX60) 6m
with toolbox (free consumables kit)

User’s manual

SPARTUS® is not a brand-dependent and / or in any way connected with CEBORA®, EWS®. Offered plasma torch is produced from a different manufacturers documentation for SPARTUS®.
