SPARTUS®
ProCUT 105CNC
STRONG, EFFECTIVE, INDUSTRIAL PLASMA CUTTER.
Technical parameters
| Input | ~3 × 400V ± 10% 50 / 60 Hz |
| Cutting current [A] | 20 – 105 |
| Max. cutting thickness [mm] | 55 |
| Duty cycle [%] | 100 |
| PLASMA PARAMETERS | |
| Output working voltage [V] | 88 - 125 |
| Recomended work pressure [bar] | 5,5 |
| >Air consumption [l/min] | 200 |
| Post-gaz |  |
| Contactless pilot arc ignition (no HF) | |
| OTHER | |
| Current consumpiton [A] | 28 |
| Power factor (cosφ) | 0,76 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 33 |
| Dimensions [mm] | 640 × 240 × 460 |
Description:
SPARTUS® ProCUT 65CNC.This is an inverter plasma cutter with integrated CNC control socket. Designed for cutting metals and other electrically conductive materials. It is powered with three-phase 400V source power.
Through the use of modern technology, we have obtained excellent source for professional plasma cutting. Maximum cutting current is 105A and the maximum thickness of the material being cut equals 55mm.
This unit has a lot of innovative solutions to support
the process of plasma cutting and the operation of the
device. It has pilot arc ignition system without highfrequency
(no HF - pilot arc is ignited by shifting back
of the electrode).
The cutter is equipped with a pressure reducer with air
filter which is mounted at the rear of the casing, in a
place specially designed for that purpose (protection
against damage eg. during the move).
Built-in displays: cutting current and air pressure.
Allows to full control of the cutting parameters.
Examples of use: industrial,production, CNC plasma tables.
SPARTUS® ProCUT 105CNC package: SP100H 6m
Device SPARTUS® ProCUT 105CNC
>Handy plasma torch SPARTUS® 100H 6m (type: PT100)
With toolbox (free consumables kit)
Air filter with the pressure control
3m work clamp
Gas hose
User's manual
Click on photo to enlarge

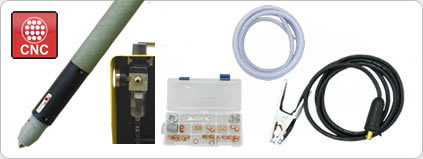

SPARTUS® ProCUT 105CNC package: CNC SP100M 6m
Device SPARTUS® ProCUT 105CNC
Machine plasma torch SPARTUS® 100M 6m (standard PT100)
With toolbox (free consumables kit)
Air filter with the pressure control
3m work clamp
Gas hose
User's manual
Click on photo to enlarge
