SPARTUS®
EasyARC 205LCD
PRECISION AND LIGHT INVERTER WITH LCD DISPLAY
Technical parameters
Input | ~1× 230V ± 10% 50 / 60 Hz |
Welding Current [A] | 10 200 |
Duty cycle | 60[%] 200[A] |
No-load voltage [V] | 80 |
Hot Start | 0 - 10 |
Arc Force | 0 - 10 |
TIG Lift DC welding mode | 10 200 |
OTHER | |
Current consumpiton [A] | 42 |
Power factor (cosφ) | 0,76 |
Efficiency η [%] | 85 |
Insulation class | H |
Protection class | IP21s |
Weight [kg] | 4 |
Dimensions [mm] | 270 x 130 x 200 |
Description:
SPARTUS® EasyARC 205LCD is small, light inverter welder. It allows the MMA and TIG Lift DC welding in the 10 — 200A range at high 60% work cycle.
The modern LCD allows an easy and intuitive setting the welding current strength, simultaneously presenting recommended electrode diameter and material thickness for the set current.
Functions:
- Hot Start — facilitates striking the arc
- Arc Force — prevents the electrode from “sticking” to the welded material
Examples of applications: light industry, farm, repair works in the field, workshop.

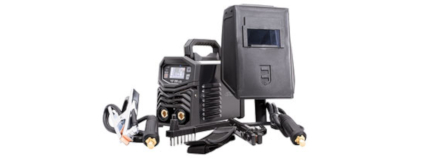

Package EasyARC 205LCD:
Device SPARTUS® EasyARC 205LCD
Electrode holder
Work clamp
Shield
Hammer with a brush
Shoulder strap
User's manual
